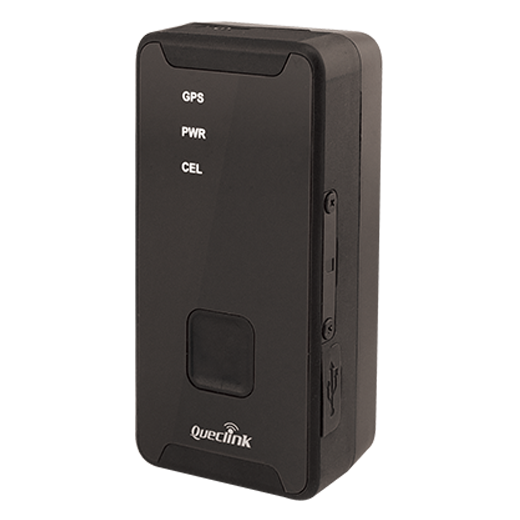

Queclink GL320MG
The GL320MG is the LTE version of GL300. It is used for a wide range of applications which require real-time location knowledge, such as private investigations, package delivery, temporary tracking of vehicles, long distance transportation, endurance racing and animal management.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 93 g (3.28 oz.) |
| Size | 77.9×39.9×26.7 mm (3.07x1.57x1.05 in) |
| Waterproof class | IPX5 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/ B66/B71/B85, GSM/GPRS 850/900/1800/1900, B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 |
| Cellular network generation | Cat M1, CAT NB2, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
Features
| Odometer | Yes |
| Motion sensor | Yes |
| Built-in battery | Yes |
| Battery capacity | 2600 mAh |
Interfaces
| Discrete inputs | 2 |
Input Fields
State Fields
Events monitoring
