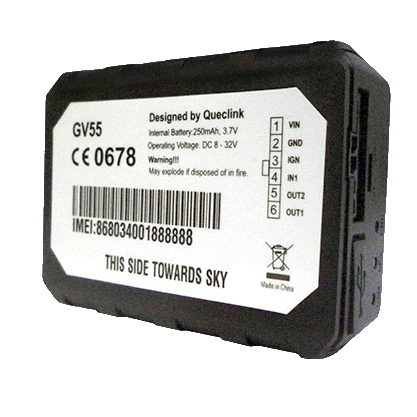

Queclink GV55

The GV55 includes two mini telematics devices that allow easy installation for customers. The series offers ideal and cost-effective solutions for vehicle security and car leasing and light-duty applications.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous
  • LBS

Mobile networks

  • Quad Band
  • 2G / 3G

Power supply

  • External power supply 8V to 16V DC

Other features

  • Micro-sized device allowing easier and more covert installation
  • Driving behavior monitoring and incident notification
  • Multiple I/O interfaces for monitoring and control
  • Internal 3-axis accelerometer supporting driving behavior monitoring, power saving and motion detection

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764
Integrated on28/11/2012

General information

PurposeVehicle
InstallationDIY

Housing

Weight44 g (1.55 oz.)
Size63x50x13.2 mm (2.48x1.97x0.52 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
GalileoYes
BeidouYes
Assisted GPSYes
Chipsetu-blox

Connectivity

Cellular network typeCDMA2000 800/1900
Internal antenna (Connection)Yes
Cellular network generation3G

Interfaces

Number of outputs2
Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Non-volatile memoryYes
Supported
AccelerometerYes

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
Input changeYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Device ID typeStatic (IMEI)
Message exchange formatASCII
Firmware update OTAYes
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported
