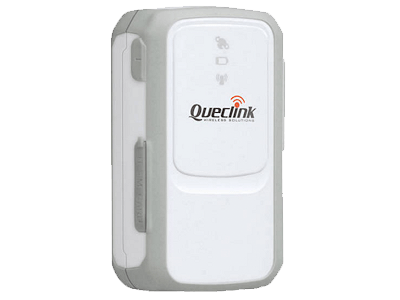

Queclink GL200 is a portable GPS locator designed especially for individual workers or vehicles. High-sensitive GPS receiver will work for a long time from the moment of the First usage. It has GPRS/GSM subsystem that works in a wide frequency band from 850 to 1900 MHz and can be remotely controlled via GPRS channel. As an addition it has a built-in three-axis accelerometer, temperature sensor and inside battery indicator.
This lightweight device is also designed for travelers who can place it in their luggage and always know the location of the belongings.
GL200 supports Assisted GPS and GLONASS, as well as GSM cell-ID based positioning.
Device supports continuous and interval tracking modes. Together with sleeping mode they can be configured in the most flexible ways.
On the left side panel you can see the “Function” button. It’s small-size and easy to find, nevertheless you’ll hardly push it occasionally. Long-press on it activates SOS signal.
Queclink GL200 tracker is remarkable for its battery life. According to our field tests it runs in continuous mode at least 10 hours (in normal conditions with active moving), while in interval tracking mode it can report about its position for up to one week.
The Li-pol rechargeable battery has capacity of 1300 mAh. The battery can’t be removed, what makes sense for anti-sabotage in the employees tracking applications. To charge the battery you can use included AC/DC adaptor (or any other similar adaptor with standard micro-USB plug), while car adapter is optional.
Queclink GL200 works in GSM Quad-band mobile networks.
Local and remote management
GL200 tracker is fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back.
You can also configure it from a PC, but you will require a special serial cable, which is not always included into a standard package (depends on the local vendor). The software is designed for professional users and has average usability.
The Pin 7 on Mini-USB connector is for ignition detection when GL200 is used in vehicle tracking application.
Queclink GL200 has three LEDs that allow to monitor its state:
- GSM LED
- GPS LED
- Power LED
The manufacturer offers original accessories, that can work with the device:
- GL200 Sheath
- Car cigarette charger
- Car kit charger
- External battery kit
- Data cable
- External cable
- External GPS Active antenna
- Holders (with / without magnets)
|EU platform||tracker.navixy.com (22.214.171.124)|
|US platform||tracker.us.navixy.com (126.96.36.199)|
|Integrated on||11/27/2012, 27/11/2012|
|Purpose||Personal, Pet, Vehicle, Asset|
|Weight||60 g (2.12 oz.)|
|Size||67.5x40x21 mm (2.66x1.57x0.83 in)|
|Internal antenna (GNSS)||Yes|
|Cellular network type||GSM Quad Band|
|Internal antenna (Connection)||Yes|
|External antenna (Connection)||Yes|
|Cellular network generation||2G|
|Number of outputs||1|
|Number of inputs (all types)||2|
|Battery capacity||1300 mAh|
|Driver ID reading||Yes|
|External temperature sensor reading||Yes|
|Location by Cell ID||Yes|
|Smart power consumption||Yes|
|Device switched on/off||Yes|
|GNSS signal level||Yes|
|GNSS satellites fixed||Yes|
|Server connection setup over SMS||Yes|
|Remote device configuration||Yes (over GPRS), Yes|
|Forced LBS location update over GPRS||Yes|
|Forced GNSS location update over SMS||Yes|
