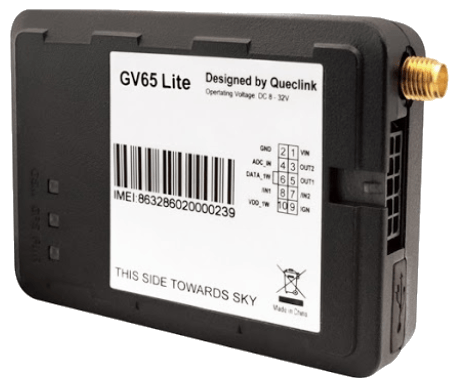

Queclink GV65 Lite

The miniature GPS tracker for a wide range of users. The GV65 Lite has several digital/analog inputs/outputs and also includes a 1-Wire interface used for driver identification and temperature control. Distinctive features: sensitive GPS-receiver, quick start-up time, external GPS-antenna, four GSM frequency ranges, support for transmitting location data via GPRS / SMS, both on request and at a specified interval, support for geofences, monitoring of driver’s driving style Vehicle. 'Black Box' (with the disappearance of GPRS) for 10,000 reports.

Show more

Location and tracking

  • GPS/GLONASS support
  • Continuous interval tracking modes
  • LBS support

Mobile networks

  • 850/900/1800/1900 MHz
  • 2G 3G Network

Power supply

  • External power supply (8 – 40 VDC)

Inputs and outputs

  • 3 Digital inputs
  • 2 Digital ouput
  • 1 Analog input
  • 1-Wire

Other features

  • Multiple I/O interfaces for monitoring and control
  • Internal 3-axis accelerometer for driving behavior monitoring, power saving and motion detection

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764
Auto registrationYes

General information

PurposeVehicle
Size73x54x22.7 mm (2.87x2.13x0.89 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes
External antenna (GNSS)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
Forced LBS location update over GPRSYes
GPSYes
GLONASSYes
GalileoYes
BeidouYes
Assisted GPSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes
Hardware keyYes
Built-in batteryYes
Battery capacity250 mAh

Interfaces

Discrete inputs3
Number of outputs2
Analog sensorYes
1-Wire interfaceYes
