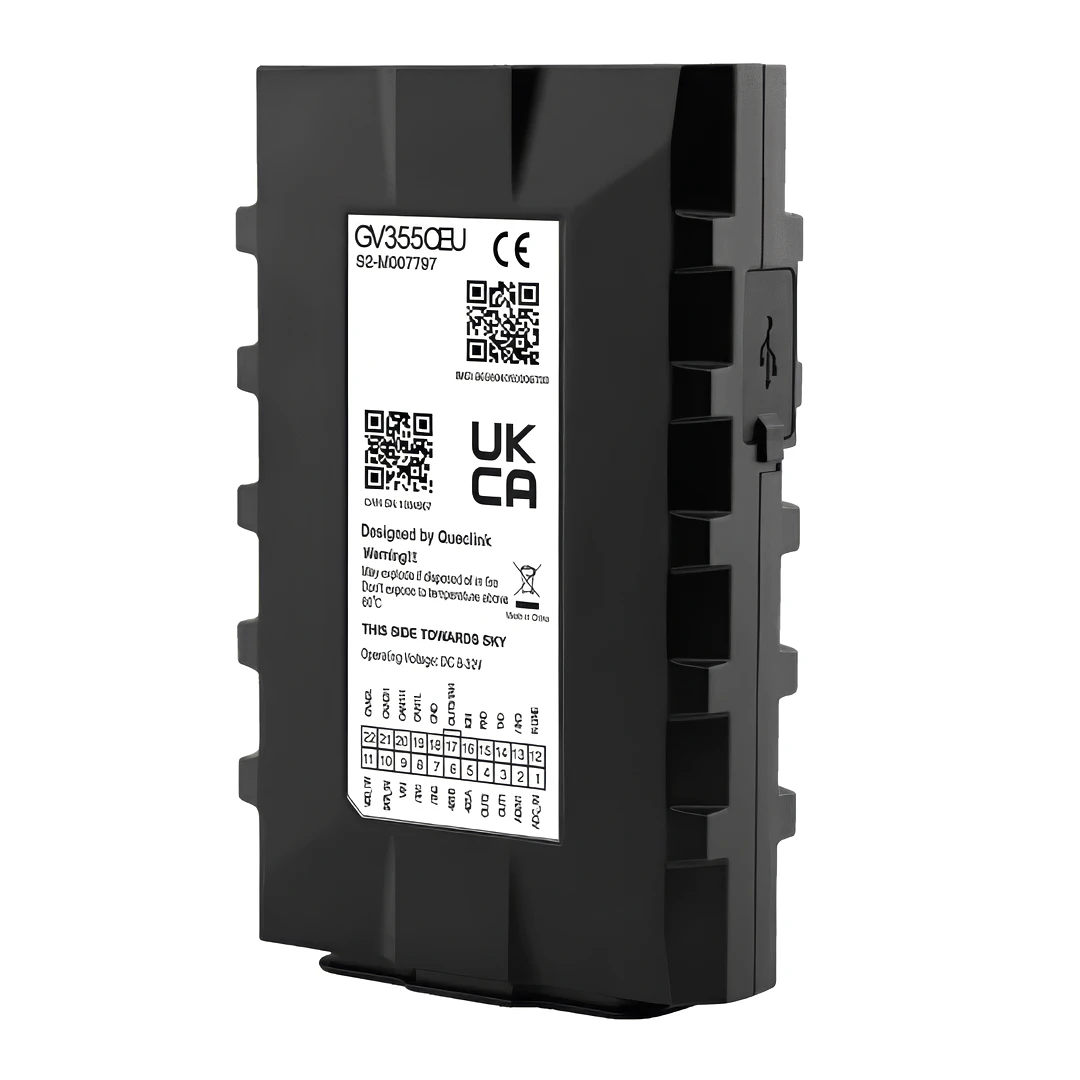

Queclink GV355CEU
The GV355CEU is Queclink’s new flagship telematics device dedicated to advanced fleet applications. Equipped with powerful vehicle data interpreter, the device can be connected to almost all tachograph models (including D8 and CAN interface tachograpah) to remotely download the tachograpah data and DDD file. In addition, it supports J1708 and all kinds of CAN bus-equipped vehicles, enabling advanced vehicle data reading, including DTC. Integrated with LTE Cat 1 and high precision GNSS module, GV355CEU ensures full coverage and reliable connection. With built-in BLE and multiple interfaces, the device supports connectivity to diverse accessories to enable temperature monitoring, driver identification, as well as event alert.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 92 g (3.25 oz.) |
| Size | 94x58.5x21 mm (3.7x2.3x0.83 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Roaming status | Yes |
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | CAT-1: B1/B2/B3/B4/B5/B7/B8/B20/B28, 2G: 850/900/1800/1900 |
| Cellular network generation | LTE CAT-1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 250 mAh |
Interfaces
| Discrete inputs | 4 |
| Number of outputs | 3 |
| Analog sensor | Yes |
| RS485 interface | Yes |
| 1-Wire interface | Yes |
| CAN/OBDII reader type | Internal |
Input Fields
State Fields
Events monitoring
