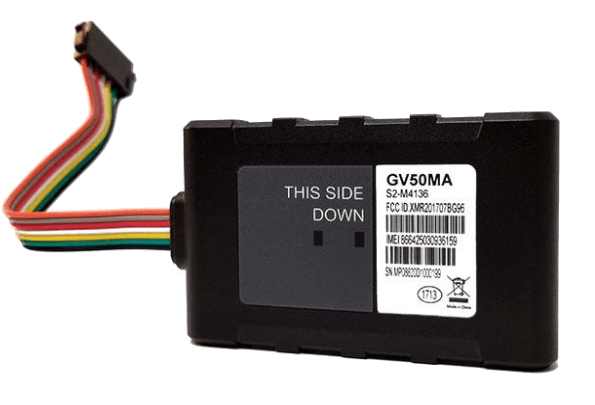

Queclink GV50M

The GV50M Series includes GSM and LTE micro GPS trackers designed for a wide variety of vehicle tracking applications. They have multiple I/O interfaces that can be used for monitoring or controlling external devices. The built-in GPS receiver has superior sensitivity and fast initial positioning.

Show more

Their multiband LTE Cat-M1 and Cat-NB1 allow the GV50M Series’ location to be monitored in real time or periodically tracked by a backend server and mobile devices. System integration is straightforward as complete documentation is provided for the full featured @Track protocol. The @Track protocol supports a wide variety of reports including emergency alarm, geo-fence boundary crossings, as well as external power supply monitoring and position reports.

Location and tracking

  • GPS Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 700/1700/1900
  • 2G / 4G

Power supply

  • 190 mAh Li-Po build-in battery
  • 8 – 32 V DC

Inputs and outputs

  • 1 Discrete input
  • 1 Universal discrete input / Digital output

Other features

  • Remote management
  • LED indication
  • Accessories
  • LTE

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764
Auto registrationYes

General information

PurposeVehicle
Size87x55x12.5 mm (3.43x2.17x0.49 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeLTE 700/1700/1900
Cellular network generation4G, 2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
Forced LBS location update over GPRSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes

Interfaces

Discrete inputs2
Number of outputs2
