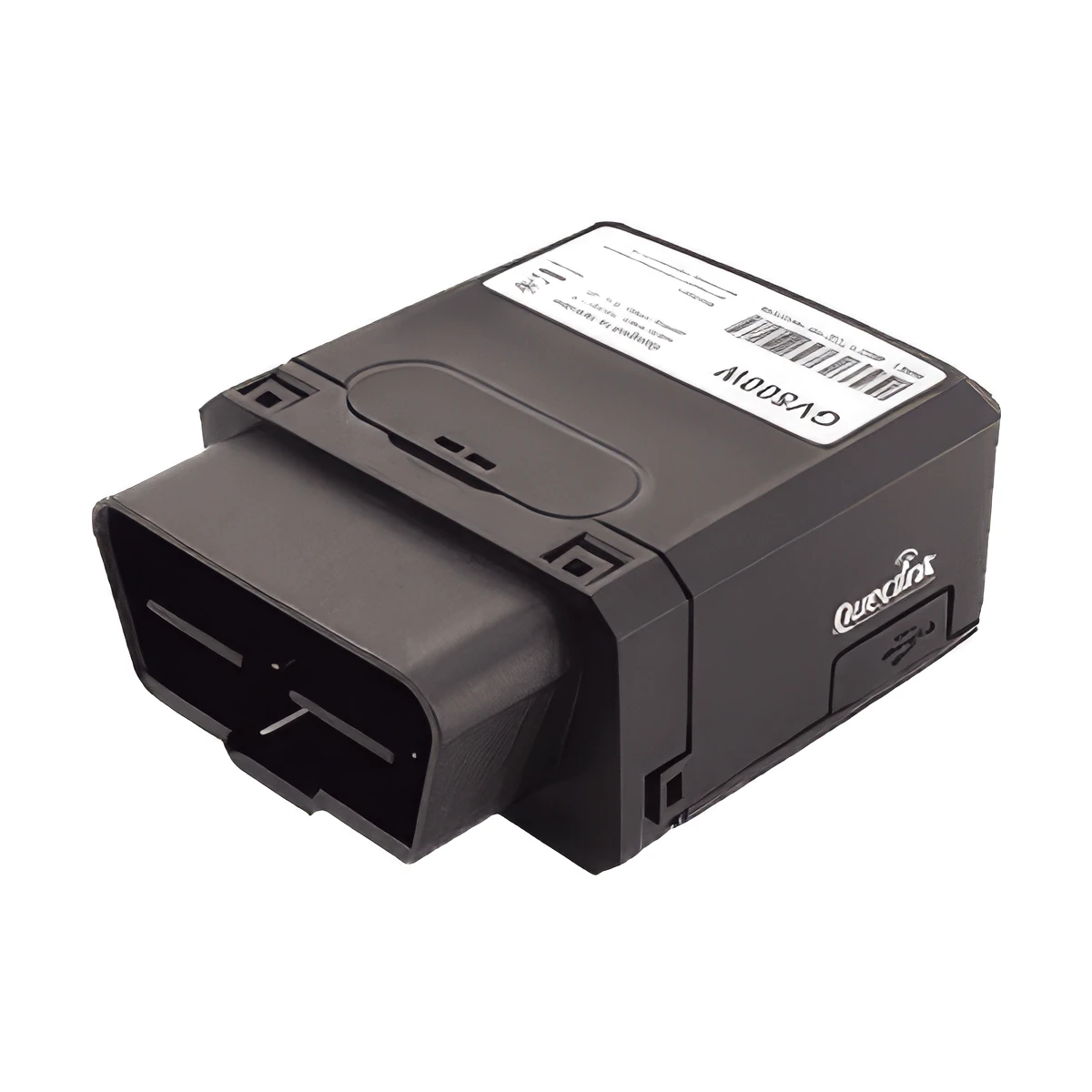

Queclink GV500W

GV500W is considered as a more advanced model than original GV500 because it supports GSM/GPRS/EDGE and UMTS/HSDPA (3G) subsystems. This device can read a diagnostic data from an onboard PC of the most vehicle models. On this criteria that GPS tracker is considered the best among OBDII devices.

Show more

This tracker supports the J1850 PWM, J1850 VPW, ISO 9141-2, ISO 14230, ISO 15765, J1939, CAN_USER1, CAN_USER2 and VW TP2.0 standards.

Also, it has the support of Assisted GPS that have a positive impact on the quality of tracking. It is most important for OBDII devices that are connected under the steering column where GPS signal is weaker.

It can work in a wide operating voltage range from 8V to 32V DC.

Location and tracking

GV500W comes with modern GNSS chip from u-blox, which has high sensitivity and receives signals of GPS, GLONASS and other systems. Besides it supports Assisted GPS (A-GPS) technology for faster location acquiring. To provide even better sensitivity the device is embedded with two GPS antennas (for manufacture dates starting from December 2015). The second antenna serves as a backup in case the main antenna does not perform well in some specific situations (OBDII trackers are often placed under the wheel’s column where GPS signals are weaker). All of these give a positive impact on the quality of tracking.

As for the tracking modes, they are fully adjustable: by time and distance intervals, direction change. The device has power saving modes and well detects the movement status according to the Ignition stat (PIN #1) and smart proprietary algorithm based on internal G-Sensor.

OBDII diagnostic data

Queclink GV500W reads a lot of data from an vehicle’s diagnostic system. The tracker supports many standards (J1850 PWM, J1850 VPW, ISO 9141-2, ISO 14230, ISO 15765, J1939, CAN_USER1, CAN_USER2 and VW TP2.0) and on this criterion is considered one of the best OBDII devices. With GV500W you can retrieve the following information:

  • Fuel level
  • Fuel consumption
  • Dashboard speed
  • Coolant temperature
  • Throttle position
  • Engine load
  • VIN – Vehicle Identification Number
  • and other

It also provides information about MIL (Malfunction Indicator Lamp – Check Engine) and DTC error codes.

Events detection

The number of detected events far exceeds the typical amount for OBDII trackers. GV500W hardware and firmware process such events as Tow, Harsh driving (braking, cornering, acceleration), Long idling (with engine working), Detach from OBDII socket, Low external power voltage, Low backup battery, Signal jamming and others.

Power supply

Advanced power management helps to provide lower power consumption and that device can work for many hours even in active mode.

Accessories

For specific installations an OBDII extension cable can be offered.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764
Integrated on06/09/2013

General information

PurposeVehicle
InstallationNot required

Housing

Weight51 g (1.8 oz.)
Size48x25x48 mm (1.89x0.98x1.89 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
GalileoYes
BeidouYes
Assisted GPSYes
Chipsetu-blox

Connectivity

Cellular network typeGSM 850/1900
Internal antenna (Connection)Yes
External antenna (Connection)No
Cellular network generation3G, 2G

Hardware features

Battery capacity250 mAh
Built-in batteryYes
AccelerometerYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported

Tracking features

Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

External power cut offYes
Supported
Car crashYes
Supported
TowingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported
