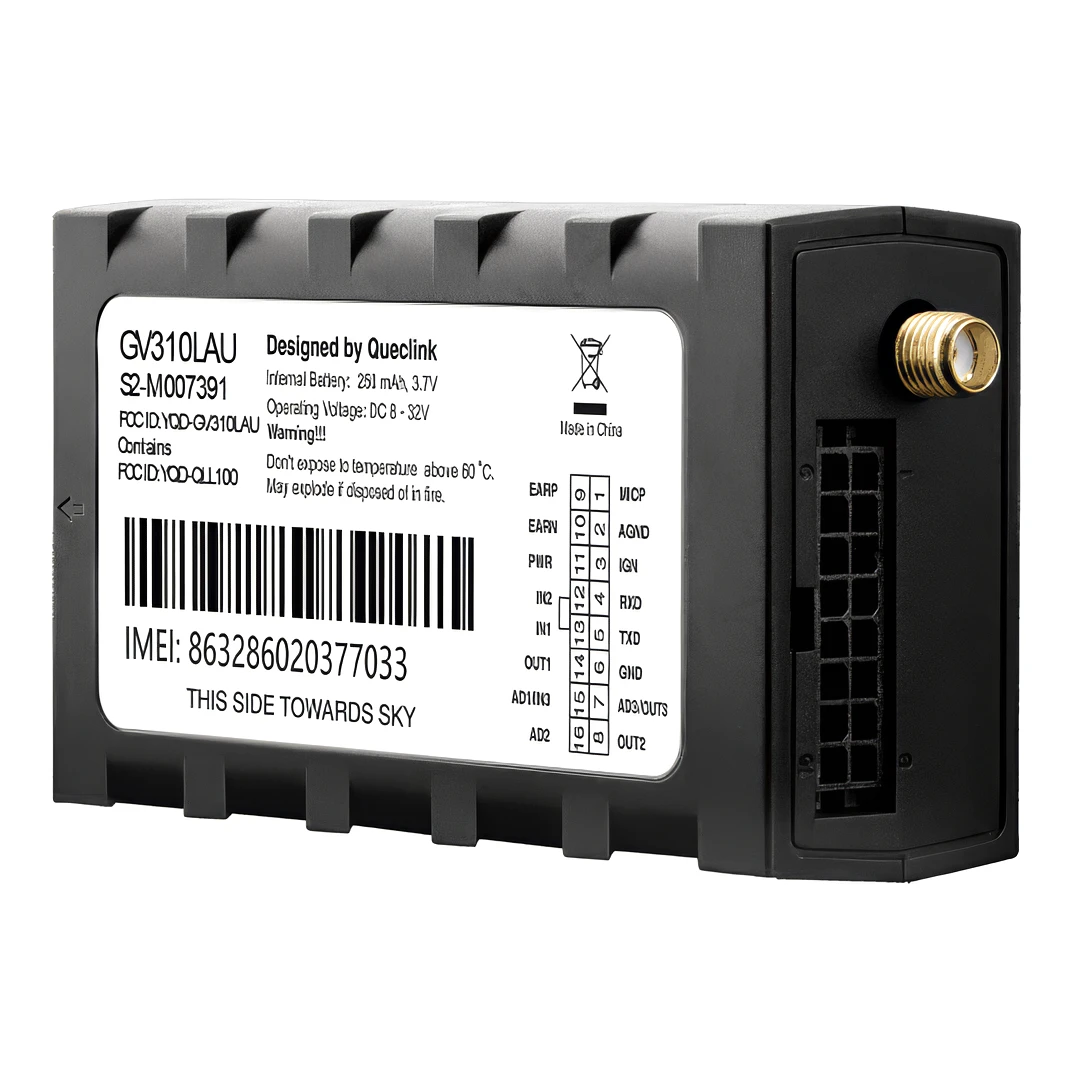

Queclink GV310LAU
Queclink GV310LAU is a vehicle GPS tracker that is integrated with Navixy. It is the LTE Cat 4 version of the popular GV300 and is suitable for heavy truck and car management applications. It offers flexibility and can be used in a wide range of scenarios thanks to its pre-integrated accessories, which include CAN data capture and RS232 data acquisition. The device also features built-in BLE, which enables connectivity with various wireless accessories such as BLE beacons and temperature monitoring sensors.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 74 g (2.61 oz.) |
| Size | 80x48x25 mm (3.15x1.89x0.98 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
| External antenna (Connection) | Optional |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28, WCDMA: B1/B2/B5/B8, EGPRS: 850/900/1800/1900MHz |
| Cellular network generation | 3G, LTE Cat 4, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
| Assisted GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 250 mAh |
Interfaces
| Discrete inputs | 5 |
| Number of outputs | 3 |
| Analog sensor | Yes |
| CAN/OBDII reader type | External |
Input Fields
State Fields
Events monitoring
