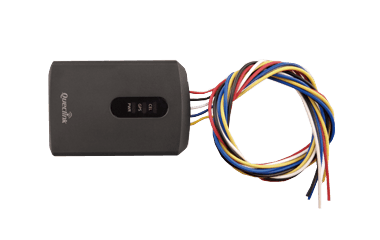

Queclink GMT200

Queclink GMT200 is a water resistant GPS tracker designed for applications requiring low current drain such as motorcycles and boats. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the GMT200's location to be monitored in real time or periodically tracked by a backend server and mobile devices.

Show more

Location technologies

There is one of the latest u-blox GNSS chip inside Queclink GMT200. It’s pretty sensitive and no doubts that external GPS antenna is not required indeed (which is very helpful for simple and hidden installation on motorcycle or boat). It also supports Assisted GPS technology which provides short TTFF. Thanks to the flexible settings available for tracking the tracks look accurate.

The GSM Cell id based location method can be used as a back up – to provide approximate location when no GPS signals are available (e.g. in the multi-level parking facilities). But this feature is also should be supported on the tracking software platform’s side.

Interfaces

There are 5 wires on GMT200 user cable which contains the connection for power, ignition input, digital input, digital output, etc.

Advantages

  • Micro-sized device allowing easier and more covert installation
  • Wide operating voltage 8V to 32V DC
  • Low power consumption, long standby time with internal battery
  • Embedded full featured @Track protocol
  • Multiple I/O interfaces for monitoring and control
  • Internal 3-axis accelerometer for power conservation and motion detection
  • Power consumption can be fully configured
  • Three working power modes
  • Water resistant, IPX6 compliant
  • CE certified

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764
Integrated on19/02/2015, 2/19/2015

General information

PurposeVehicle
InstallationProfessional

Housing

Weight65 g (2.29 oz.)
Size70x46x17.5 mm (2.76x1.81x0.69 in)
Waterproof classIP6X

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
GalileoYes
BeidouYes
Assisted GPSYes
Chipsetu-blox

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
External antenna (Connection)No
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity650 mAh
Built-in batteryYes
AccelerometerYes

Hardware extras

Driver ID readingYes
Supported

Tracking features

Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Input changeYes
Supported
External power cut offYes
Supported
TowingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported
