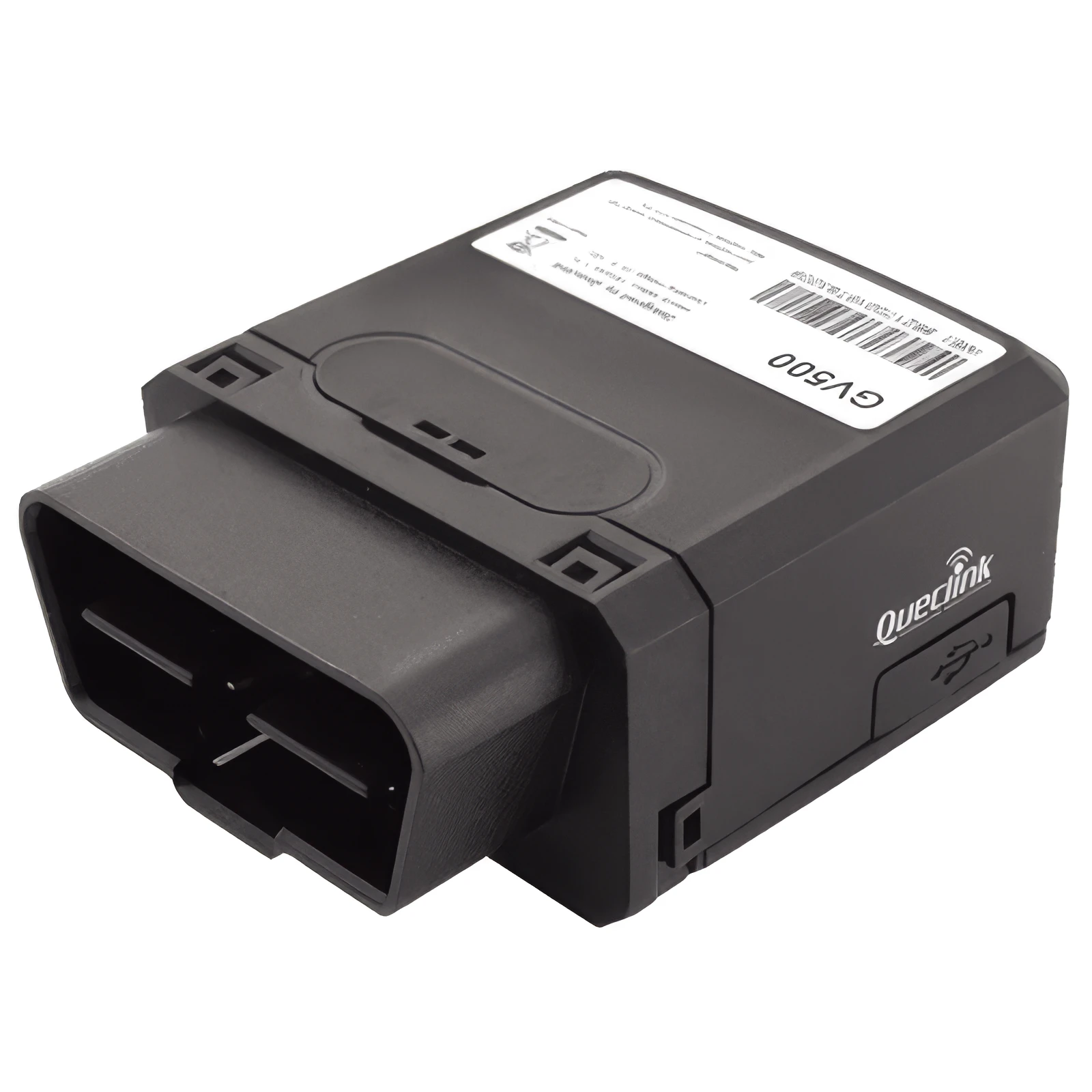

Queclink GV500 is an OBDII tracker that easily plugs into vehicle's diagnostic port. Thanks to sensitive GNSS chip from u-blox, A-GPS technology and two GNSS antennas it provides accurate location and reliable tracking. The device supports all major OBDII protocols and delivers much of the information from vehicle's diagnostic systems.
Location and tracking
GV500 comes with modern GNSS chip from u-blox, which has high sensitivity and receives signals of GPS, GLONASS and other systems. Besides it supports Assisted GPS (A-GPS) technology for faster location acquiring. To provide even better sensitivity the device is embedded with two GPS antennas (for manufacture dates starting from December 2015). The second antenna serves as a backup in case the main antenna does not perform well in some specific situations (OBDII trackers are often placed under the wheel’s column where GPS signals are weaker). All of these give a positive impact on the quality of tracking.
As for the tracking modes, they are fully adjustable: by time and distance intervals, direction change. The device has power saving modes and well detects the movement status according to the Ignition stat (PIN #1) and smart proprietary algorithm based on internal G-Sensor.
OBDII diagnostic data
Queclink GV500 reads a lot of data from an vehicle’s diagnostic system. The tracker supports many standards (J1850 PWM, J1850 VPW, ISO 9141-2, ISO 14230, ISO 15765, J1939, CAN_USER1, CAN_USER2 and VW TP2.0) and on this criterion is considered one of the best OBDII devices. With Gv500 you can retrieve the following information:
- Fuel level
- Fuel consumption
- Dashboard speed
- Coolant temperature
- Throttle position
- Engine load
- VIN – Vehicle Identification Number
- and other
It also provides information about MIL (Malfunction Indicator Lamp – Check Engine) and DTC error codes.
Supported car models
The number of detected events far exceeds the typical amount for OBDII trackers. GV500 hardware and firmware process such events as Tow, Harsh driving (braking, cornering, acceleration), Long idling (with engine working), Detach from OBDII socket, Low external power voltage, Low backup battery, Signal jamming and others.
Advanced power management helps to provide lower power consumption and that device can work for many hours even in active mode.
For specific installations an OBDII extension cable can be offered.
|EU platform||tracker.navixy.com (184.108.40.206)|
|US platform||tracker.us.navixy.com (220.127.116.11)|
|Weight||42 g (1.48 oz.)|
|Size||48x25x48 mm (1.89x0.98x1.89 in)|
|Internal antenna (GNSS)||Yes|
|Cellular network type||GSM Quad Band|
|Internal antenna (Connection)||Yes|
|External antenna (Connection)||No|
|Cellular network generation||2G|
|Battery capacity||130 mAh|
|Fuel level sensor reading||Yes|
|Driver ID reading||Yes|
|Location by Cell ID||Yes|
|Smart power consumption||Yes|
|External power cut off||Yes|
|Network signal level||Yes|
|GNSS signal level||Yes|
|GNSS satellites fixed||Yes|
|Internal battery level||Yes|
|CAN/OBDII reader type||Yes, Internal|
|CAN/OBDII parameters||Yes, Fuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other|
|DTC codes reading||Yes|
|Server connection setup over SMS||Yes|
|Remote device configuration||Yes (over GPRS), Yes|
|Forced LBS location update over GPRS||Yes|
|Forced GNSS location update over SMS||Yes|
