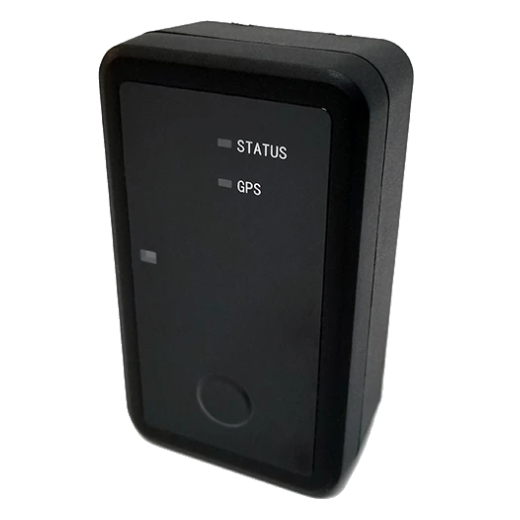

Queclink GL500ME

The GL500ME asset tracker is a powerful, IP67-compliant, waterproof GNSS tracker powered by a CR123A lithium battery pack. Configuration allows the device to wake up on a preset schedule to check if it needs to shift from dormant to active status and/or send an update of its current location, then return to a dormant state. Optimally configured, the device will operate up to seven years.


Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764
Auto registrationYes

General information

PurposeAsset
Weight140 g (4.94 oz.)
Size87×51×33,5 mm (3.43x2.01x1.3x0.2 in)
Waterproof classIP67
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Network operator IDYes
Cellular network typeGSM 850/900/1800/1900, B1/B2/B3/B4/B5/B/8/B12/B13/B18/B19/B20/B25/B28
Cellular network generationCat M1, Cat NB1, 2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes

Features

Motion sensorYes
Built-in batteryYes
Battery capacity1400 mAh

Interfaces
