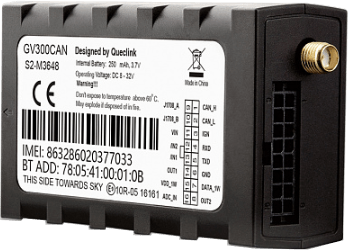

Queclink GV300CAN

The GV300CAN is a compact GNSS tracking device designed for a wide variety of vehicle tracking applications. The model features CAN and J1708 ports that decode information from vehicle digital buses (CAN bus and J1708). It also has multiple interfaces that can support a wide range of external accessories.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous and interval tracking modes

Mobile networks

  • Quad Band
  • 2G / 3G

Power supply

  • Build-in battery Li-Polymer, 250 mAh
  • External power supply 8V to 32V DC

Inputs and outputs

  • 3 Digital inputs
  • 1 Digital output
  • 1 Analog input
  • 1-Wire

Other features

  • Local and remote management
  • Multiple I/O interfaces including smart input, ignition detection and fuel level sensing
  • 1-wire supporting temperature sensors and iButton driver ID
  • Internal 3-axis accelerometer supporting driving behavior monitoring, power saving and motion detection

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47764
Auto registrationYes

General information

PurposeVehicle
Size80x48x25 mm (3.15x1.89x0.98 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G
Network operator IDYes

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
Forced LBS location update over GPRSYes
GPSYes
GLONASSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes
Hardware keyYes

Interfaces

Discrete inputs3
Number of outputs2
Analog sensorYes
1-Wire interfaceYes
