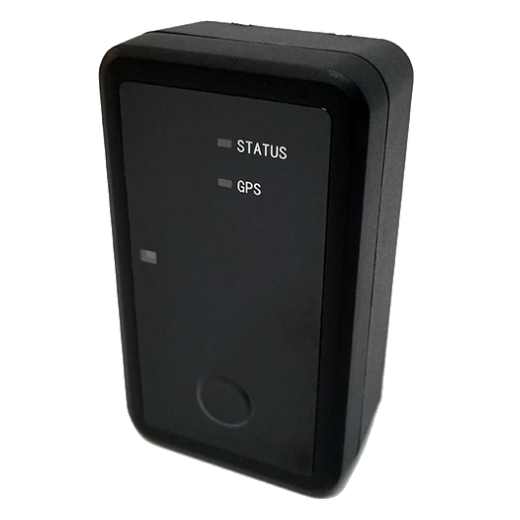

Queclink GL500MA
The GL500MA asset tracker is a powerful, IP67-compliant, waterproof GNSS tracker powered by a CR123A lithium battery pack. Configuration allows the device to wake up on a preset schedule to check if it needs to shift from dormant to active status and/or send an update of its current location, then return to a dormant state. Optimally configured, the device will operate up to seven years.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 140 g (4.94 oz.) |
| Size | 87×51×33.5 mm (3.43x2.01x1.32 in) |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | GSM 850/900/1800/1900, B1/B2/B3/B4/B5/B/8/B12/B13/B18/B19/B20/B25/B28 |
| Cellular network generation | Cat M1, Cat NB1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
Features
| Motion sensor | Yes |
| Built-in battery | Yes |
| Battery capacity | 1400 mAh |
Interfaces
Input Fields
State Fields
Events monitoring
