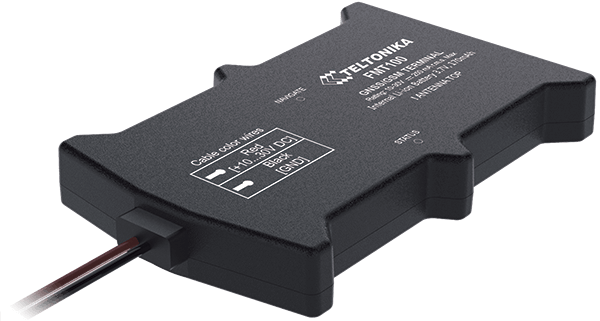

Teltonika FMT100

FMT100 is a very reliable vehicle tracker. Bluetooth 4.0 allows connecting CAN and temperature sensors for easy to setup and extensive vehicle monitoring.

Show more

Location and tracking

  • GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS
  • Continuous tracking mode
  • LBS

Mobile networks

  • Quad-band (850/900/1800/1900)MHz
  • 2G

Power supply

  • Build-in battery 170mAh
  • External power supply 10 V – 30 V DC

Other features

  • Bluetooth 4.0
  • Supports Bluetooth CAN readers like ELM327 and STN1110
  • Supports Bluetooth temperature sensors TZ-BT04 and TZ-BT05
  • IP65 waterproof case
  • LED indication
  • Supported up to 4 BLE temperature, humidity, battery level or fuel sensors

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationProfessional

Housing

Weight63 g (2.22 oz.)
Size92.5x57.6x14 mm (3.64x2.27x0.55 in)
Waterproof classIP65

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
GalileoYes
BeidouYes
Assisted GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Hardware features

Battery capacity170 mAh
Built-in batteryYes
Supported

Hardware extras

External temperature sensor readingYes

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
Car crashYes
Supported
Mobile signal jammingYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
Supported
CAN/OBDII parametersYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported

Certification

CEYes
FCCYes
EACYes
