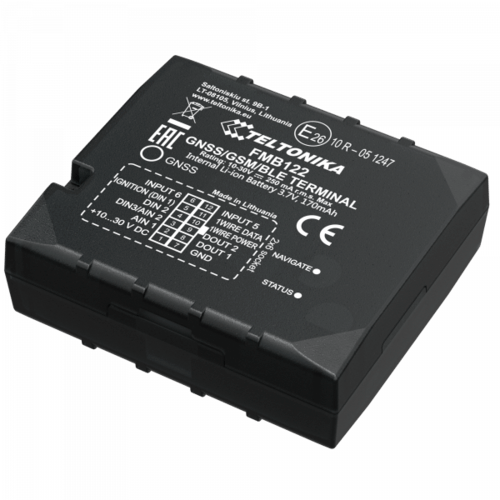

Teltonika FMB122

FMB122 is a small and professional tracker with internal high gain GSM and GNSS antennas. This tracker is able to collect device coordinates and other useful data and transfer them via GSM network to the server. This device is useful for fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB122 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door, etc.

Show more

Location and tracking

  • GPS, GLONASS support
  • Continuous tracking mode
  • LBS support

Mobile networks

  • 850/900/1800/1900 MHz
  • 2G network

Power supply

  • External power supply (+10…+30 V DC)
  • Integrated LiPo back-up battery

Inputs and outputs

  • 2 Digital Inputs
  • 1 Analog Input
  • 2 Digital Open-collector Outputs

Other features

  • Internal memory
  • Local and remote management
  • Eco-driving
  • Dual SIM

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationProfessional

Housing

Size65x56,6x18,9 mm (2.56x2.2x0.24x0.71x0.35 in)

GNSS Location

External antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs2
Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
OutputsYes
Supported

Hardware features

Internal temperature sensorYes
Supported

Hardware extras

Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII parametersSpeed, Fuel level, Engine RPM, Engine load, Throttle position

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
On request
