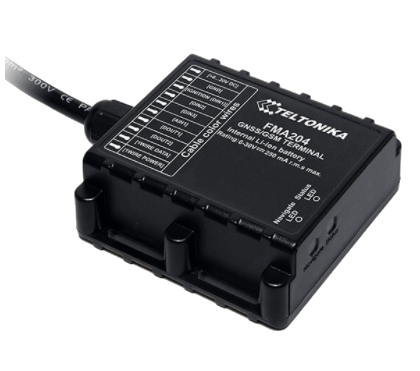

Teltonika FMA204

FMA204 is a terminal with GPS and GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. This device is perfectly suitable for applications, which need location acquirement of remote objects. It is important to mention that FMA204 has additional inputs and outputs, which let you control and monitor other devices on remote objects. FMA204 also has a USB port for device status log output and entering configurations.

Show more

Location and tracking

  • GPS, GLONASS, GALILEO, BEIDOU Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 850/900/1800/1900 MHz
  • 2G Network

Power supply

  • Build-in battery (1800mAh Li-ion)
  • External power supply (6-30 V)

Inputs and outputs

  • 3 Digital inputs
  • 1 Analog input
  • 2 Digital outputs

Other features

  • 1-Wire
  • Local and remote management
  • LED indication
  • Odometer
  • Offline tracking

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776
Auto registrationYes

General information

PurposeVehicle
Size72.5x73x27.3 mm (2.85x2.87x1.07 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Roaming statusYes
Network signal levelYes
Cellular network typeHPSA/UMTS 850/900/1900/2100
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes
GLONASSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes
Hardware keyYes

Interfaces

Discrete inputs3
Number of outputs2
Analog sensorYes
1-Wire interfaceYes
