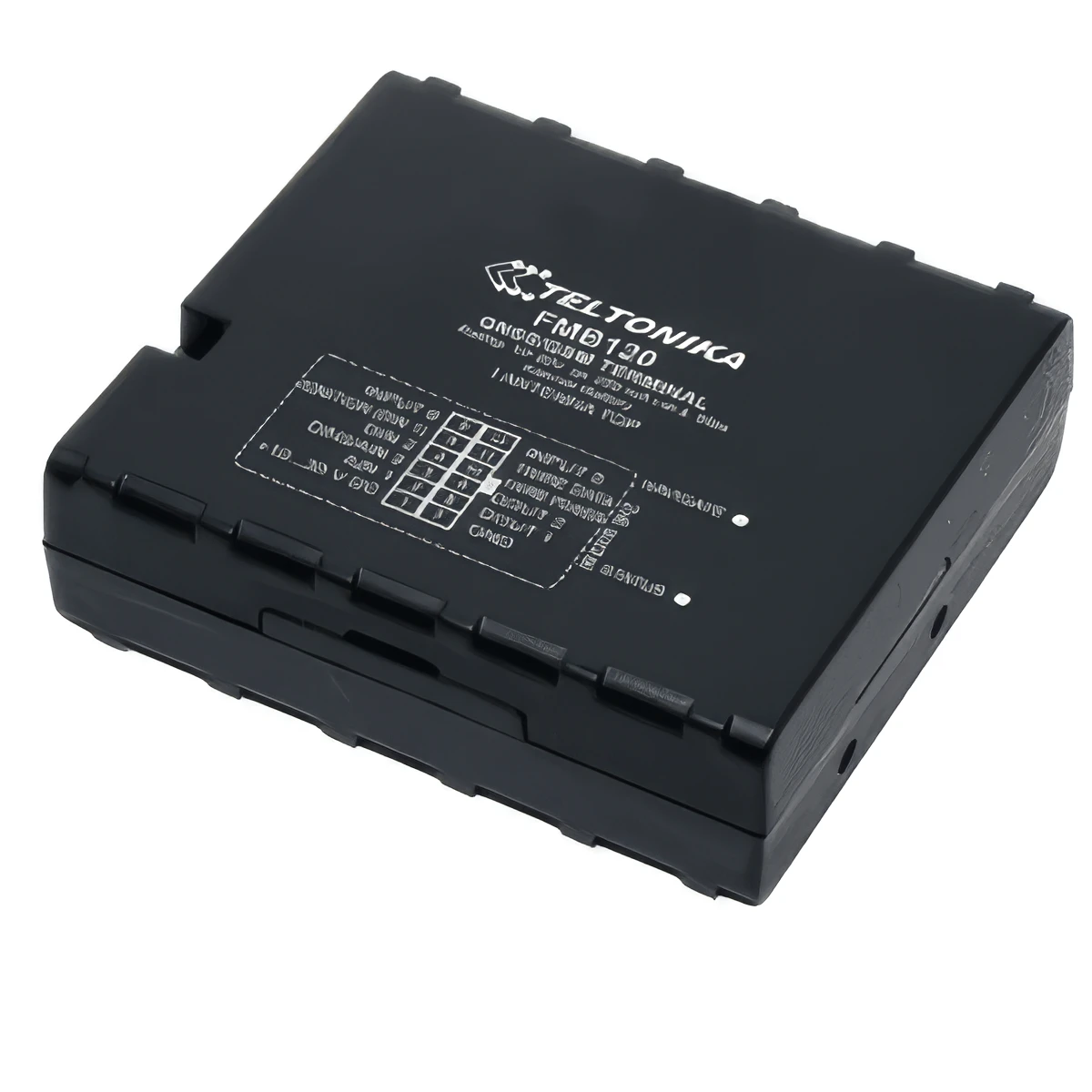

Teltonika FMB120

FMB120 is a small and professional tracker with internal high gain GSM and GNSS antennas. This tracker is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is useful for: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB120 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.

Show more

Location and tracking

  • GPS, GLONASS support
  • Continuous tracking mode
  • LBS support

Mobile networks

  • 850/900/1800/1900 MHz
  • 2G network

Power supply

  • External power supply (+10…+30 V DC)
  • Integrated LiPo back-up battery

Inputs and outputs

  • 2 Digital Inputs
  • 1 Analog Input
  • 2 Digital Open-collector Outputs

Other features

  • Internal memory
  • Local and remote management
  • Eco driving
  • Dual SIM
  • Supported up to 4 BLE temperature, humidity or fuel sensors

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776
Auto registrationYes

General information

PurposeVehicle
Size6x18 mm (0.24x0.71 in), 9 mm (0.35 in), 65x56 mm (2.56x2.2 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Roaming statusYes
Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes
GLONASSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes
Hardware keyYes

Interfaces

Discrete inputs4
Number of outputs2
Analog sensorYes
Impulse counterYes
Frequency sensorYes
