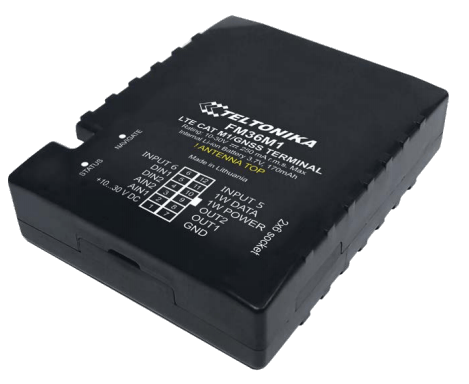

Teltonika FM36M1

Teltonika FM36M1 is GNSS, LTE CAT M1, NB IoT terminal. FM36M1 is designed for light vehicles tracking but also suitable for advanced applications like logistics, delivery services, utility transport and more. It is excellent for refrigerated transport, because this terminal have extended input/output set and 1-wire interface for temperature monitoring.

Show more

With Teltonika CAN adapters, FM36M1 can be even used in agriculture or construction & mining. Moreover FM36M1 supports LTE CAT M1 and NB IoT, with additional GSM backwards compatibility, which makes this device usable with newest, cost efficient and most popular technologies.

Location and tracking

  • GPS, GLONASS, GALILEO, BEIDOU Support
  • Continuous and interval tracking modes

Mobile networks

  •  850/900/1800/1900MHz
  • 4G

Power supply

  • 170 mAh Li-Ion build-in battery
  • External power supply (10 – 30 V)

Inputs and outputs

  • 2 Digital inputs
  • 2 Universal Digital/Analog inputs
  • 2 Outputs

Other features

  • 1-Wire
  • Local and remote management
  • LED indication
  • External CAN reader

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationProfessional

Housing

Size77x62x19 mm (3.03x2.44x0.75 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
Assisted GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation4G

Interfaces

Number of outputs2
Number of inputs (all types)4
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
1-Wire interfaceYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesInterval, Continuous
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Mobile signal jammingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
Supported
CAN/OBDII parametersFuel level, fuel consumption, engine RPM, throttle position and other

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes
Forced GNSS location update over SMSYes
Supported
