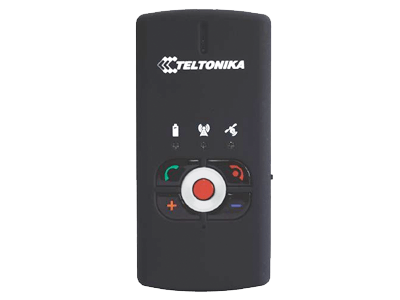

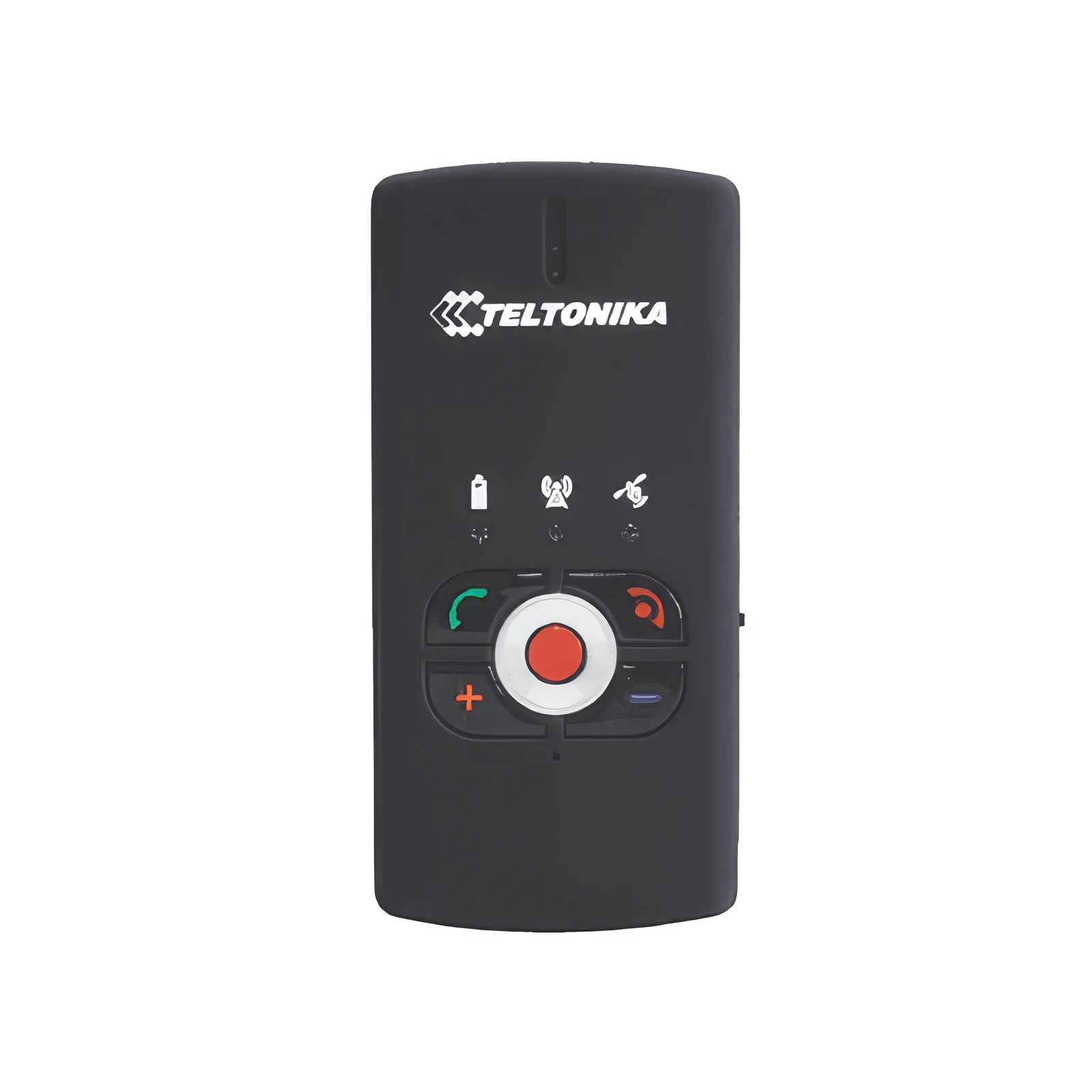

Teltonika GH4000

Teltonika GH4000 is life tracking device with built-in with GPS/GLONASS and GSM connectivity, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. It is an upgraded version of Teltonika GH3000 device.

Show more

Teltonika GH4000 is life tracking device with built-in with GPS/GLONASS and GSM connectivity, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. Device can be used as a mobile phone for call centers or in applications where location acquirement of remote objects is needed: fleet management, people protection, pets protection, car protection, employee’s control, sport events, construction sites and so on.

GH4000 improvements over GH3000

Teltonika GH4000 is an upgraded version of Teltonika GH3000 and it has such advantages:

  • Longer operating on internal battery
  • Fast and reliable position fix
  • Man down function: movement sensor for fall detection and power saving
  • Alarm button for data and voice transmission
  • Voice calls
  • Polygonal Geofence zones
  • Parking function
  • Silent call
  • Remote control by SMS

Applications

Teltonika GH4000 can be used for:

  • Outdoor safety for elderly people
  • Lone worker protection (Man Down function)
  • Child protection
  • Asset security

Key Features

The key features of the Teltonika GH4000 device are:

  • Ultra high tracking/navigation sensitivity
  • GPS/GLONASS up to -165 dBm Quad-band
  • Internal memory 1Mb
  • Improoved micro USB connector
  • Five keys for a function execution:

Device has 5 configurable buttons, reset button and lock switch. Keyboard helps user to control device. Every configurable button can perform users set functions, for example: call, send SMS, activate alarms and configure the device.

  • Recomended operating temperature 0 up to 50C
  • Storage temperature -20 up to 60C
  • Three LED indicators for device status indication
  • Sending acquired data via GPRS (TCP/IPand UDP/IPprotocols)

LED Indication

Teltonika GH4000 has three LEDs:

  • GPS LED
  • GSM LED
  • Battery LED

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776
Auto registrationYes

General information

Purposeasset,personal,pet
Size92x44x18 mm (3.62x1.73x0.71 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)No
External antenna (GNSS)No

Connectivity information

Roaming statusYes
Network signal levelYes
Cellular network typeGSM 900/1800
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over SMSYes
GPSYes
GLONASSYes

Features

OdometerYes
Built-in batteryYes
Battery capacity1050 mAh
