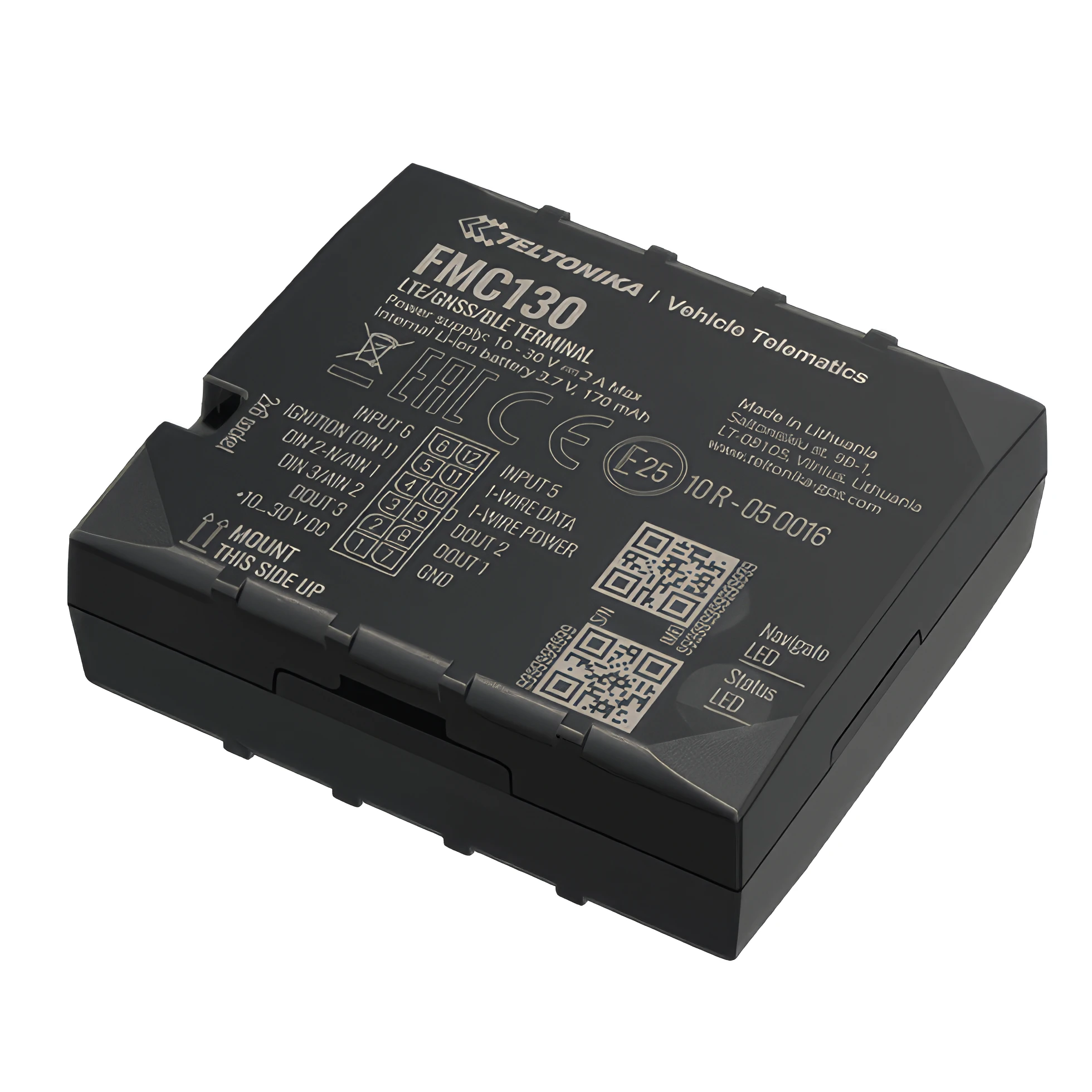

Teltonika FMC130

FMC130 is a small ADVANCED series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital/analog/negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery. It keeps all of the functionalities from FMB130 and builds on top of them with its industry-leading connectivity coverage.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous
  • LBS

Mobile networks

  • 2G / 3G/4G

Power supply

  • Build-in battery 170 mAh Li-Ion, 3.7 V
  • External power supply 10 – 30 V DC with overvoltage protection

Inputs and outputs

  • 3 digirtal inputs
  • 1 negative input
  • 2 impulse inputs
  • 2 analog inputs
  • 1 CAN adapter input
  • 1-Wire
  • 3 digital outputs

Other features

  • Local and remote management
  • LED indication
  • Accelerometer

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationProfessional

Housing

Weight55 g (1.94 oz.)
Size65x56.6x20.6 mm (2.56x2.23x0.81 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 4G, 2G

Interfaces

Number of outputs3
Number of inputs (all types)8
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Impulse inputsYes
Supported
1-Wire interfaceYes

Hardware features

Internal temperature sensorYes
Supported

Hardware extras

Fuel level sensor readingYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
Network roaming statusYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII parametersFuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes
Forced GNSS location update over SMSYes
On request
