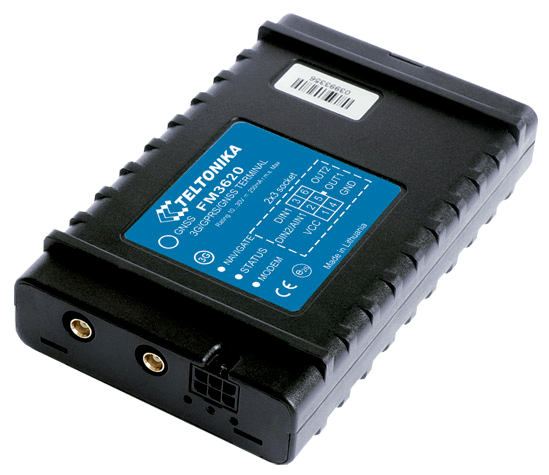

Teltonika FM3620 C1

FM3620 is a terminal with GPS/GLONASS and GSM/3G connectivity with backup battery, which is able to collect device coordinates and other useful data and transfer them via the GSM/3G network.

Show more

This device is perfectly suitable for applications where location acquirement of remote objects is needed. It is important to mention that FM3620 has additional inputs and outputs, which let you control and monitor other devices on remote objects. FM3620 also has a USB port for device status log output and configuration.

Location and tracking

  • GPS/GLONASS support
  • Continuous tracking mode
  • External GNSS antenna for higher sensitivity

Mobile networks

  • UMTS/HSPA+ bands: 850/900/1700/1900/2100 MHZ
  • 3G support
  • External GSM antenna for higher sensitivity

Power supply

  • High capacity Internal backup battery

Inputs and outputs

  • 1 digital input
  • 1 universal digital/analog input
  • 2 digital outputs

Local and remote management

  • The device can be managed remotely over SMS/GPRS

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

Interfaces

Number of outputs2
Number of inputs (all types)2
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported

Hardware extras

Driver ID readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
On request
Network roaming statusYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeExternal
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes
Forced GNSS location update over SMSYes
On request
