Teltonika FM3622

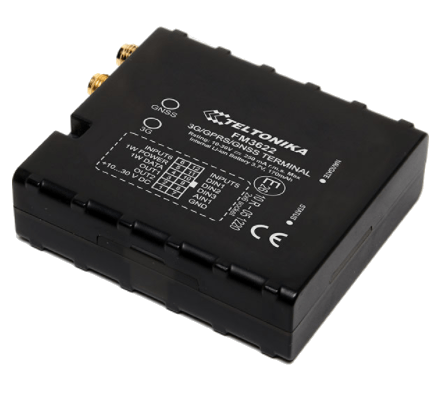

FM3622 is a terminal with GPS/GLONASS and GSM/3G connectivity with backup battery, which is able to collect device coordinates and other useful data and transfer them via the GSM/3G network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. It is important to mention that FM3622 has additional inputs and outputs, which let you control and monitor other devices on remote objects. FM3622 also has a USB port for device status log output and configuration.

Show more

Location and tracking

  • GPS, GLONASS, GALILEO, BEIDOU Support
  • Continuous and interval tracking modes

Mobile networks

  • 850/900/1700/1900/2100 MHZ
  • 2G / 3G Networks

Power supply

  • Build-in battery (170 mAh Li-ion)
  • External power supply (10-30 V)

Inputs and outputs

  • 1 Universal Digital/Analog input
  • 3 Digital inputs
  • 2 Digital outputs

Other features

  • Local and remote management
  • LED indication
  • 3G Network support
  • 1-Wire
  • USB 2.0 Interface
  • Overvoltage protection

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776
Auto registrationYes

General information

PurposeVehicle

Connectivity information

Roaming statusYes
Network signal levelYes
Network operator IDYes

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes
Hardware keyYes

Interfaces

Discrete inputs5
Number of outputs2
Analog sensorYes
