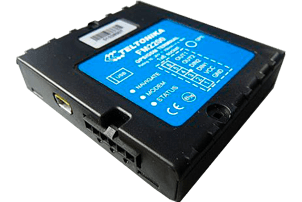

Teltonika FM2200

Teltonika FM2200 is a vehicle GPS tracker that can be used for fleet management as well as for the personal cars and vans. It works with GPS and GLONASS systems and it is able to connect to GSM networks and has an internal and external GNSS antennas to receive and transmit the signals.

Show more

This device has an accelerometer to control a motion of a vehicle.

Package contents

Teltonika FM2200 device is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation. The package contains:

  • FM2200 device;
  • GNSS antenna;
  • USB cable;
  • A card, which contains URL to download FM2200 device drivers and Configurator software.

Location and tracking

FM2200 model is embedded with chip that supports both GPS and GLONASS. It doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

The tracking mode is flexible configured: by moving every 100m, and every 60 sec, and on turning on 30 degrees by default. When there is no movement (detected by “Ignition” status), tracker sends data every 180 seconds.

Mobile networks

FM2200 can work with GSM 900/1800 MHz only.

Interfaces

FM2200 model features such interfaces as

  • USB port;
  • 2 digital inputs;
  • 2 digital outputs;

Power supply

FM2200 uses and voltage range 10-30V, which makes possible to install it both on cars and trucks. Device also features an optional built-in rechargeable backup battery. When fully charged it ensures about 1 hour of device operation (in normal conditions).

Sleep mode

FM2200 can enter sleep mode (standby mode) under two conditions:

  • FM2200 does not detect movement.
  • FM2200 does not send or receive any data for 5 minutes.

This means that if coordinate recording interval is less than 5 minutes, FM2200 will never go to sleep mode. FM2200 exits sleep mode when it detects movement again. While in sleep mode, FM2200 sets GPS receiver to sleep mode, therefore it does not record or send any data. The power usage also decreases saving vehicle’s battery.

Local and remote management

Teltonika FM2200 tracker can’t be controlled over GPRS, though it supports firmware updating via GPRS (FOTA). However, there is a wide list of SMS commands in a ASCII  format, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS. To decrease the amount of SMS required for configuration SMS in binary format can be also used.

You can also configure FM2200 from a PC using proprietary software (Teltonika Configurator) and standard USB-cable which is included into package.

LED Indication

FM2200 has three status LEDs:

  • Modem LED: indicates GSM/GPRS mode
  • Status LED: indicates system Power
  • Navigation LED: indicates GPS reception

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776
Auto registrationYes

General information

PurposeVehicle
Size66x60x14 mm (2.6x2.36x0.55 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)No
External antenna (GNSS)Yes
External antenna (Connection)No

Connectivity information

Network signal levelYes
Cellular network typeGSM 900/1800
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes
GLONASSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes

Interfaces

Discrete inputs2
Number of outputs2
