Teltonika FMB204

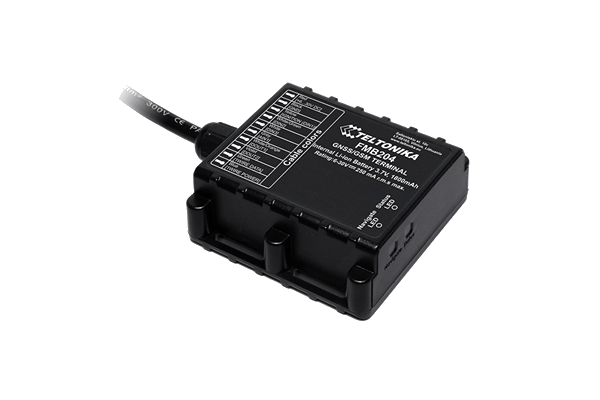

Teltonika FMB204 is a SPECIAL waterproof (IP67) tracker with Blue-tooth connectivity, internal high gain GNSS and GSM antennas and integrated high capacity backup battery. Device is designed to work longer without power supply. FMB204 with LiPo battery can work up to 6 days in power saving mode. FMB204 is perfectly suitable for agriculture, delivery, refrigerated transport, trailers tracking, security & emergency services and even more. 6-30V power supply makes FMB204 suitable for motorbikes and water transport.

Show more

Location and tracking

  • GPS, GLONASS, GALILEO, BEIDOU Support
  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 850/900/1800/1900 MHz
  • 2G Network

Power supply

  • Built-in battery (1800mAh Li-ion)
  • External power supply (6-30 V)

Inputs and outputs

  • 3 Digital inputs
  • 1 Analog input
  • 2 Digital outputs

Other features

  • 1-Wire
  • IP67 Water resistant
  • Accelerometer
  • LED indication
  • Odometer
  • Crash detection
  • Supported up to 4 BLE temperature, humidity, battery level or fuel sensors

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationProfessional

Housing

Size72.5x73x27.3 mm (2.85x2.87x1.07 in)
Waterproof classIP67

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
GalileoYes
BeidouYes

Connectivity

Cellular network typeQuad-band 850/900/1800/1900
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs2
Number of inputs (all types)4
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
1-Wire interfaceYes

Hardware features

Battery capacity1800 mAh
Built-in batteryYes
Supported

Hardware extras

External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

External power cut offYes
Supported
Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
On request
