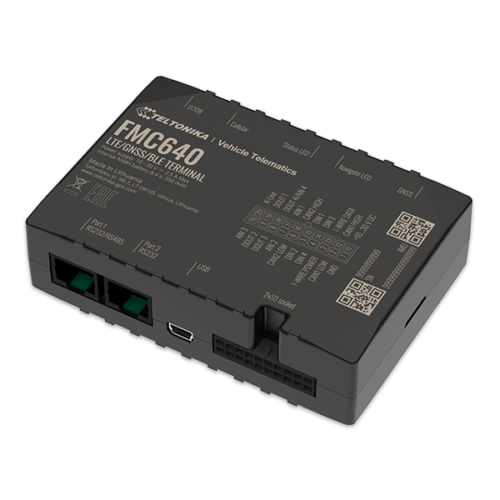

Teltonika FMC640

Teltonika FMC640 is a PROFESSIONAL series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. Device equipped with GNSS/LTE and Bluetooth modules. FMC640 will maximize your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM.Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.

Show more

Location and tracking

  • GPS, GLONASS, GALILEO, BEIDOU, QZSS
  • Continuous and interval tracking modes
  • LBS

Mobile networks

  • Bands
  • 2G / 3G / 4G LTE

Power supply

  • Build-in battery 550 mAh Ni-Mh
  • External power supply 10 – 30 V DC

Inputs and outputs

  • 4 Digital Inputs
  • 4 Digital Outputs
  • 4 Analog Inputs
  • 1 1-Wire interface
  • 2 RS232 interfaces
  • 1 RS485 interface
  • 2 CAN J1939
  • 1 CAN J1708

Other features

  • Green/Eco Driving
  • Local and remote management
  • Over Speeding detection
  • Jamming detection
  • Excessive Idling detection
  • Towing detection
  • Crash detection
  • Immobilizer
  • iButton Read Notification
  • DDD files download

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationProfessional

Housing

Weight197 g (6.95 oz.)
Size104.1x76.8x31.5 mm (4.1x3.02x1.24 in)

GNSS Location

GPSYes
GLONASSYes

Connectivity

Cellular network typeLTE 700/850/1700/1800/1900/2100/2600, GSM Quad Band
Cellular network generation3G, 4G, 2G

Interfaces

Number of RS232 interfaces2
Number of outputs4
Number of inputs (all types)16
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
RS232 interfaceYes
RS485 interfaceYes
1-Wire interfaceYes

Hardware extras

Fuel level sensor readingYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

External power cut offYes
Supported
Car crashYes
Supported
Mobile signal jammingYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
Network roaming statusYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII parametersSpeed, fuel level, fuel consumption, engine RPM, engine load

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
Supported
