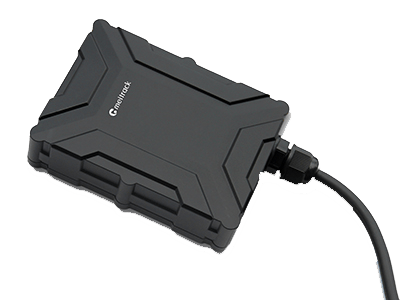

Meitrack T366G

Meitrack T366G is a vehicle GPS tracker with IP67 water-resistance rating and can be installed into cars, motorcycles, yachts, and boats. It is equipped with built-in GPS and GSM antennas. The unit can work well in extreme environments.

Show more

Location and tracking

T366G model is embedded with GPS chip. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

The tracking mode is flexible and can be configured depending on distance, time and angle. The default parameters set by the system are 100m,  60 sec,  30 degrees. When there is no movement, tracker sends data every 180 seconds.

Interfaces

  • 2 digital inputs (1 negative input and 1 positive input)
  • 1 analog detection input
  • 1 output
  • 1-Wire iButton
  • 1-Wire temperature sensor
  • 1 USB port

Mobile networks

With Quad-band GSM 3G module Meitrack T366G can be operated all over the world.

Power supply

Meitrack T366G uses voltage range 11-36V, which makes possible to install it both on cars and trucks. Device also features optional rechargeable backup battery. When fully charged it ensures about 3 hours of device operation (in normal conditions).

Local and remote management

Meitrack devices support management via GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.

LED Indication

T366G has two status LEDs:

  • Status LED: indicates GSM/GPRS mode
  • Navigate LED: indicates GPS reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47752

General information

PurposeVehicle
InstallationProfessional

Housing

Weight100 g (3.53 oz.)
Size80.5x60x23.5 mm (3.17x2.36x0.93 in)
Waterproof classIP67

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G

Interfaces

Number of outputs1
Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
1-Wire interfaceYes
OutputsYes
Supported

Hardware features

Built-in batteryOptional

Hardware extras

Emergency buttonYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
On request

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
TowingYes
Supported

Self monitoring

GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Forced GNSS location update over SMSYes
Supported
