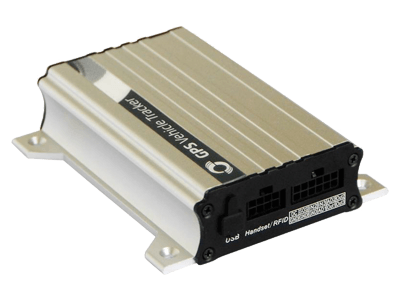

Meitrack T1

Meitrack T1 is a solid GPS tracker for vehicles with the digital interfaces that can be used for installation of a camera, LED/LCD displays or for the other advanced features.

Show more

The device has a microphone and a speaker for the voice communication.

It has the GPS and GSM antennas that can provide the tracking accuracy about 10 meters.

Location and tracking

Meitrack T1 model is embedded with GPS chip. It supports Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

The tracking mode is flexible and can be configured depending on distance, time and angle. The default parameters set by the system are 100m,  60 sec,  30 degrees. When there is no movement, tracker sends data every 180 seconds.

Interfaces

  • 3 digital inputs (2 negative inputs and 1 positive input)
  • 2 analog detection inputs
  • 2 outputs
  • 1 RS232 port
  • 1 USB port
  • 1-wire temperature sensor and 1 iButton Driver ID

Accessories

The manufacturer offers different accessories, such as:

  • Camera Handset
  • RFID reader
  • A21 LCD display (dialing and SMS display)
  • A53 fuel sensor
  • A52 digital temperature sensor + A61 sensor box
  • LED display
  • iButton

Mobile networks

With Quad-band GSM 2G module Meitrack T1 can be operated all over the world.

Power supply

T1 uses voltage range 11-36V, which makes possible to install it both on cars and trucks. Device also features a built-in rechargeable backup battery. When fully charged it ensures about 3 hours of device operation (in normal conditions).

Local and remote management

Meitrack devices support management via GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.

LED Indication

Meitrack T1 has two status LEDs:

  • Status LED: indicates GSM/GPRS mode
  • Navigate LED: indicates GPS reception

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47752
Auto registrationYes

General information

PurposeVehicle
Size105x65x26 mm (4.13x2.56x1.02 in)
External antenna (GNSS)Yes
External antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over SMSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Hardware keyYes
Built-in batteryYes
Battery capacity850 mAh

Interfaces

Discrete inputs3
Number of outputs2
Analog sensorYes
1-Wire interfaceYes
