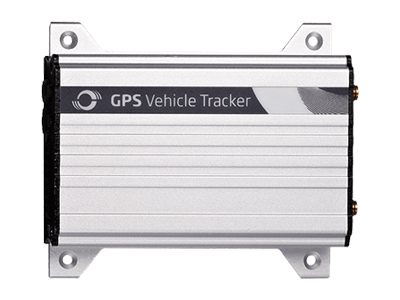

Meitrack T3

Meitrack T3 is an advanced GNSS tracker that supports the GPS and GLONASS systems. It can be used for a fleet management or for the personal needs.

It has a digital interface that can be used for installation of a camera, LEDLCD displays or for the other advanced features. The device has a microphone and a speaker for the voice communication.

Meitrack T3 the GPS/GLONASS and GSM antennas that can provide the tracking accuracy about 10 meters.

Server Integration

EU platform	tracker.navixy.com (52.57.1.136)
US platform	tracker.us.navixy.com (13.52.37.2)
Server port	47752
Integrated on	19/03/2015

General information

Purpose	Vehicle
Installation	Professional

Housing

Weight	190 g (6.7 oz.)
Size	105x65x26 mm (4.13x2.56x1.02 in)

GNSS Location

Internal antenna (GNSS)	No
External antenna (GNSS)	Yes
GPS	Yes

Connectivity

Cellular network type	GSM 850/1900
Internal antenna (Connection)	No
External antenna (Connection)	Yes

Interfaces

Number of RS232 interfaces	1
Number of outputs	3
Number of inputs (all types)	5
Discrete inputs	Yes	Supported
Analog inputs	Yes	Supported
RS232 interface	Yes
1-Wire interface	Yes

Hardware features

Battery capacity	850 mAh
Built-in battery	Yes

Hardware extras

Fuel level sensor reading	Yes	Supported
Driver ID reading	Yes	Supported

Events monitoring

Battery low	Yes	Supported
Input change	Yes	Supported
Antenna cut off	Yes	Supported
Device switched on/off	Yes	Supported

Self monitoring

Network signal level	Yes	Supported
GNSS signal level	Yes	Supported
GNSS satellites fixed	Yes	Supported
External power source voltage	Yes	Supported
Internal battery level	Yes	Supported

Remote management

Server connection setup over SMS	Yes	Supported
Remote device configuration	Yes (over GPRS), Yes
Remote outputs control	Yes (over GPRS), Yes
Forced GNSS location update over SMS	Yes	On request
