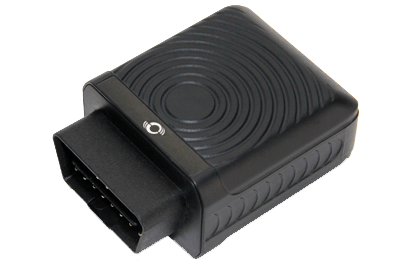

Meitrack TC68S

Meitrack TC68S is a user-friendly vehicle GPS tracker plugged into a vehicle with an OBD II connector. It can’t read telemetry data from vehicle diagnostic system, but supports vehicle positioning, tracking, and anti-theft.

Show more

With a standard OBD II plug, it can be easily installed. When the device is removed, an alert message will be sent.

Package contents

The TC68S device is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

The standard package contains:

  • TC68S device
  • USB cable
  • Quick start guide
  • Warranty card
  • CD

Optional accessories:

  • OBDII extension cord
  • Velcro

Location and tracking

Meitrack TC68S model is embedded with GPS chip with the support of GLONASS technology as well. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

The tracking mode is flexible configured: by moving every 100m, and every 60 sec, and on turning on 30 degrees by default. When there is no movement, tracker sends data every 180 seconds.

OBDII data reading

TC68S does not read any data from vehicle’s diagnostic system such as speed, engine RPM, coolant temperature, MIL, DTC codes, etc. It only takes power supply from OBDII port and can read board voltage.

Mobile networks

Meitrack TC68S has a Quad-band GSM 2G module so it can be operated all over the world.

Power supply

TC68S uses OBD II Connector Type A and voltage range 11-13V, which makes possible to install it on cars. Device also features built-in rechargeable backup battery. When fully charged it ensures about 1 hour of device operation (in normal conditions).

Local and remote management

Meitrack TC68S tracker can be controlled over GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.

You can also configure TC68S from a PC using proprietary software and standard USB-cable which is included into package.

LED Indication

TC68S has three LEDs:

  • GSM LED: indicates GSM/GPRS mode
  • GPS LED: indicates GPS reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47752

General information

PurposeVehicle
InstallationDIY
Special form factorOBDII Dongle

Housing

Weight80 g (2.82 oz.)
Size52X57X28 mm (2.05x2.24x1.1 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

ACC/Ignition inputYes
Supported

Hardware features

Battery capacity130 mAh
Built-in batteryYes
Emergency buttonYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported

Events monitoring

Battery lowYes
Supported
DetachYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Forced GNSS location update over SMSYes
Supported

Certification

CEYes
FCCYes
EACYes
