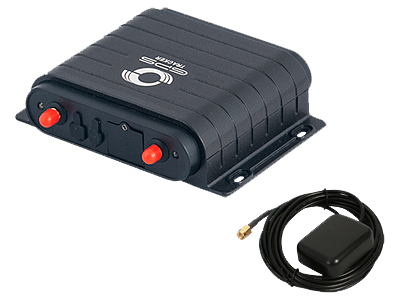

Meitrack MVT600 is a highly functional vehicle GPS tracker with the digital interfaces that can be used for installation of a camera, LED/LCD displays or for the other advanced features.
The device has a microphone and a speaker for the voice communication.
It can work during 10 hours in active mode without a recharge.
Location and tracking
Meitrack MVT600 model is embedded with GPS chip. It supports Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
The tracking mode is flexible and can be configured depending on distance, time and angle. The default parameters set by the system are 100m, 60 sec, 30 degrees. When there is no movement, tracker sends data every 180 seconds.
- 3 inputs (2 negative inputs and 1 positive input)
- 1 digital temperature sensor detection input
- 1 fuel sensor detection input
- 3 outputs
- 1 analog detection input
- 1 Wiegand port
- 4 RS232 ports
The manufacturer offers different accesories, such as:
- Camera Handset
- RFID reader
- A21 LCD display (dialing and SMS display)
- A53 fuel sensor
- A52 digital temperature sensor + A61 sensor box
- LED display
With Quad-band GSM 2G module Meitrack MVT600 can be operated all over the world.
MVT600 uses voltage range 11-36V, which makes possible to install it both on cars and trucks. Device also features a built-in rechargeable backup battery. When fully charged it ensures about 3 hours of device operation (in normal conditions).
Local and remote management
Meitrack devices support management via GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.
Meitrack MVT600 has two status LEDs:
- Status LED: indicates GSM/GPRS mode
- Navigate LED: indicates GPS reception
|EU platform||tracker.navixy.com (220.127.116.11)|
|US platform||tracker.us.navixy.com (18.104.22.168)|
|Weight||220 g (7.76 oz.)|
|Size||103x98x32 mm (4.06x3.86x1.26 in)|
|External antenna (GNSS)||Yes|
|Cellular network type||GSM Quad Band|
|External antenna (Connection)||Yes|
|Cellular network generation||2G|
|Number of RS232 interfaces||4|
|Number of outputs||3|
|Number of inputs (all types)||6|
|Battery capacity||850 mAh|
|Fuel level sensor reading||Yes|
|Driver ID reading||Yes|
|External temperature sensor reading||Yes|
|Location by Cell ID||Yes|
|Antenna cut off||Yes|
|Device switched on/off||Yes|
|Network signal level||Yes|
|GNSS signal level||Yes|
|GNSS satellites fixed||Yes|
|External power source voltage||Yes|
|Internal battery level||Yes|
|Server connection setup over SMS||Yes|
|Remote device configuration||Yes (over GPRS), Yes|
|Remote outputs control||Yes (over GPRS), Yes|
|Forced GNSS location update over SMS||Yes|
