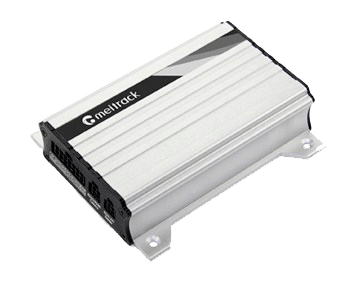

Meitrack T622G

Meitrack T622G is a specially designed GPS tracker with the fleet management industry in mind. This unique tracker has the reliable specifications that all of Meitrack brand products hold plus more. Having an integrated battery, the T622G can bring up to 80 hours in power saving mode, and 9 hours in normal mode. It also comes equipped with a 3D acceleration sensor for use as a towing alarm or a vibration detection power switch.

Show more

Location and tracking

T622G model is embedded with GPS chip. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

The tracking mode is flexible and can be configured depending on distance, time and angle. The default parameters set by the system are 100m,  60 sec,  30 degrees. When there is no movement, tracker sends data every 180 seconds.

Interfaces

  • 3 digital inputs (1 negative trigger, 1 positive trigger, and 1 positive/negative selectable trigger)
  • 2 analog detection inputs
  • 2 outputs
  • 1 RS232 EXT port
  • 1 RS232/485 port
  • 1 USB port
  • 1 CAN bus interface
  • 1-Wire interface

Mobile networks

With Quad-band GSM 3G module Meitrack T622G can be operated all over the world.

Power supply

Meitrack T622G uses voltage range 11-36V, which makes possible to install it both on cars and trucks. Device also features a built-in rechargeable backup battery. When fully charged it ensures about 9 hours of device operation (in normal conditions).

Local and remote management

Meitrack devices support management via GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.

LED Indication

T622G has two status LEDs:

  • Status LED: indicates GSM/GPRS mode
  • Navigate LED: indicates GPS reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47752

General information

PurposeVehicle
InstallationProfessional

Housing

Weight190 g (6.7 oz.)
Size105x65x26 mm (4.13x2.56x1.02 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G

Interfaces

Number of RS232 interfaces1
Number of outputs2
Number of inputs (all types)5
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
RS232 interfaceYes
Supported
RS485 interfaceYes
1-Wire interfaceYes
OutputsYes
Supported

Hardware features

Battery capacity400 mAh
Built-in batteryYes
Supported
Emergency buttonYes
Supported

Hardware extras

Fuel level sensor readingYes
Supported
Emergency buttonYes
Supported
Driver ID readingYes
Supported
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
TowingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeYes
On request

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Forced LBS location update over GPRSYes
On request
Forced GNSS location update over SMSYes
Supported
