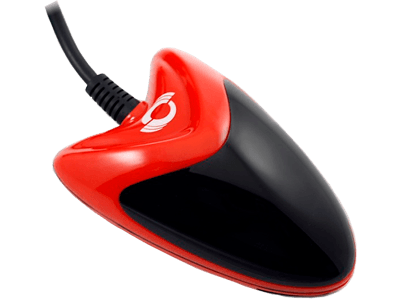

Meitrack MVT100

The Meitrack MVT100 is a fancy vehicle tracker that can be used in cars, motorcycles, yachts, and boats. The product is easy to install, water resistant (IP66), dustproof, and has built-in antennas.

Show more

Meitrack MVT100 it is a rather portable GPS tracker for vehicles. It is distinguished by its very special design and orientation for motorcycles and small boats. This device has the built-in magnets for easy installation to the vehicle.

MVT100 is a waterproof and dustproof model with a wide range of tracking options.

Package content

The package includes:

  • MVT100 with a battery,
  • I/O cable, and SOS button
  • 3M sticker
  • Screws
  • USB cable
  • CD

Location and tracking

Meitrack MVT100 model is embedded with GPS chip. It doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Meitrack MVT100 has a Quad-band GSM module that allows to use it all over the world.

Power supply

MVT100 uses built-in rechargeable backup battery of 850 mAh capacity. When fully charged it ensures about 4 hours of device operation (in normal conditions).

Note: When you use the MVT100 for the first time, connect the MVT100 GND (-Black) and Power (+Red) wires to 12 V or 24 V external power supply for charging. Ensure that the MVT100 is charged at least three hours. Eight hours are recommended. The MVT100 can be installed on a vehicle only after it is configured and tested

Local and remote management

Meitrack devices support management via GPRS. Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.

LED Indication

MVT100 has two LEDs:

  • Green LED indicates GSM mode
  • Blue LED indicates GPS reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47752
Integrated on19/03/2015

General information

PurposeVehicle

Housing

Weight170 g (6 oz.)
Size110x72x39 mm (4.33x2.83x1.54 in)
Waterproof classIP6X

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes

Interfaces

Number of outputs1
Number of inputs (all types)3
Discrete inputsYes
Supported
Analog inputsYes
Supported
1-Wire interfaceYes
OutputsYes

Hardware features

Battery capacity850 mAh
Built-in batteryYes

Events monitoring

Battery lowYes
Supported
Input changeYes
Supported
Antenna cut offYes
Supported
Device switched on/offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Remote outputs controlYes (over GPRS), Yes
Forced GNSS location update over SMSYes
On request
