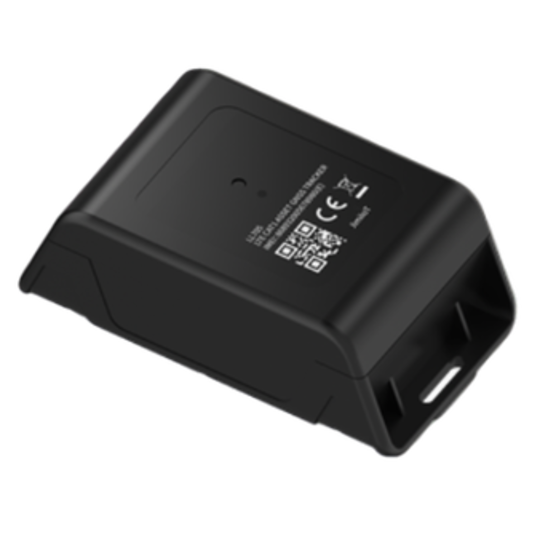

Jimi JM-LL705
The LL705 is a 4G wireless GPS tracker, engineered specifically for monitoring high-value assets such as construction and mining equipment. Its powerful 18,000mAh internal battery enables the device to operate up to a decade, given the most energy-efficient settings. This makes it ideal for scenarios needing extended service life and infrequent location updates. The LL705 can accurately identify the location of your assets through GPS+Beidou satellite systems and cell towers. Additionally, it provides installation flexibility, allowing customization with mounting accessories of your choice. Can be used for construction equipment management, mining equipment management and trailer tracking.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 289 g (10.19 oz.) |
| Size | 120x68x43.5 mm (4.72x2.68x1.71 in) |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE-FDD: B1/B3/B5/B7/B8/B20/B28, LTE-TDD: B34/B40/B41, GSM: 850/900/1800/1900 |
| Cellular network generation | LTE Cat 1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Wi-Fi LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| Beidou | Yes |
Features
| Odometer | Yes |
| Battery capacity | 18000 mAh |
Interfaces
Input Fields
State Fields
Events monitoring
