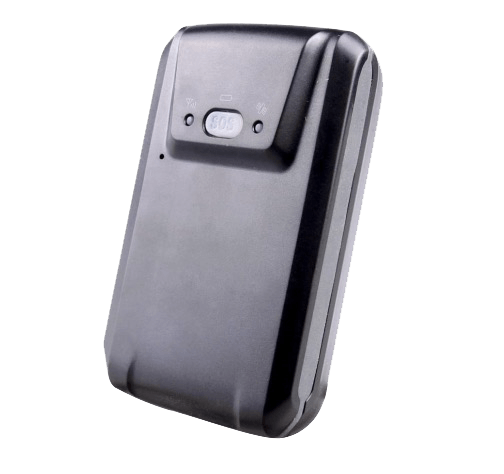

Concox GT03A

Concox GT03A is a compact light-weight vehicle GPS tracker. It is a very simple device, but suitable for personal use and vehicle monitoring.

Show more

Package contents

Concox GT03A is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

The standard package contains:

  • GT03A device
  • USB cable
  • Charger
  • Battery
  • User Manual

Location and tracking

Concox GT03A is embedded with GPS, it doesn’t support GLONASS or alternative systems.

There are only two basic tracking modes, which do not provide too much flexibility: by time interval and by distance.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Concox GT03A has a Quad-band GSM 2G that allows to operate it all over the world.

Power supply

GT03A features a rechargeable 2600 mAh battery. When fully charged it ensures about a day of device operation (in normal conditions).

Local and remote management

GT03A can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Concox GT03A has three LED indicating:

  • Backup battery charge
  • GSM/GPRS mode
  • GPS signal reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755

General information

PurposeVehicle

Housing

Weight96 g (3.39 oz.)
Size91.5x57x24 mm (3.6x2.24x0.94 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Hardware features

Battery capacity2600 mAh
Built-in batteryYes
Emergency buttonYes
Supported

Hardware extras

Emergency buttonYes
Supported

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported

Events monitoring

Battery lowYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported

Certification

CEYes
FCCYes
