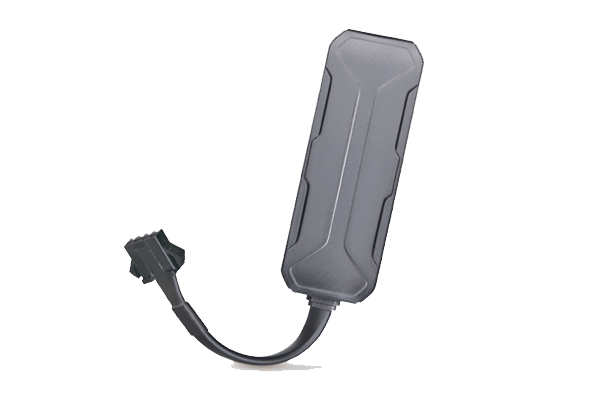

Concox ET25

ET25 is a small and light GPS tracker with solid GPS tracking capability and connectivity. Featuring a sleek and compact design, the ET25 will provide a detailed report of the vehicle’s location and activities. It is the most effective method of monitoring driving activity of your vehicles.

Show more

Package contents

Concox ET25 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

The standard package contains:

  • Device
  • Power cord
  • User Manual

Location and tracking

Concox ET25 is embedded with GPS, it doesn’t support GLONASS or alternative systems.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Concox ET25 has a Quad-band GSM 2G module that allows to operate it all over the world.

Power supply

ET25 features a rechargeable 100 mAh battery. When fully charged it ensures about 2-4 hours of device operation (in normal conditions).

Local and remote management

ET25 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.


Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755
Auto registrationYes

General information

PurposeVehicle
Weight26.6 g (0.94 oz.)
Size73.8x25.9x12.2 mm (2.91x1.02x0.48 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Built-in batteryYes
Battery capacity100 mAh

Interfaces

Discrete inputs1
Number of outputs1
