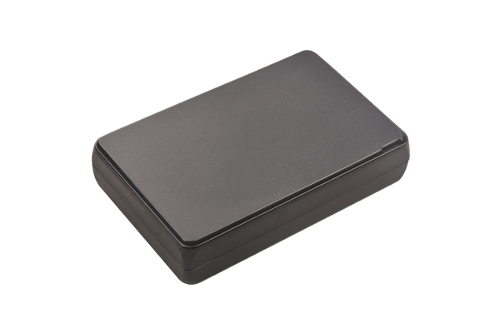

Concox AT3

Concox AT3 is a GPS vehicle tracker that provides fast and accurate real-time data. Strong magnet for easy installation, IPX5 waterproofing and 5400 mAh battery make it perfect for long-time use.

Show more

Location and tracking

  • GPS
  • LBS
  • Continuous and interval tracking modes

Mobile networks

  • Built-in quad-band GSM antenna,
  • Built-in GPS dual-mode antenna
  • Class 12 GPRS

Power supply

  • Build-in 5400 mAh lithium battery

Other features

  • IPX5 waterproof
  • 32+32Mb memory
  • LED indication
  • Equipped with a strong magnet for easy and reliable installation
  • Temperature range -20 .. 70 C

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755

General information

PurposeAsset
InstallationNot required

Housing

Weight160 g (5.64 oz.)
Size93x58x22 mm (3.66x2.28x0.87 in)
Waterproof classIP5X
Magnet mountingYes

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G

Hardware features

Battery capacity5400 mAh
Built-in batteryYes

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported

Events monitoring

Battery lowYes
External power cut offYes
Antenna cut offYes

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
