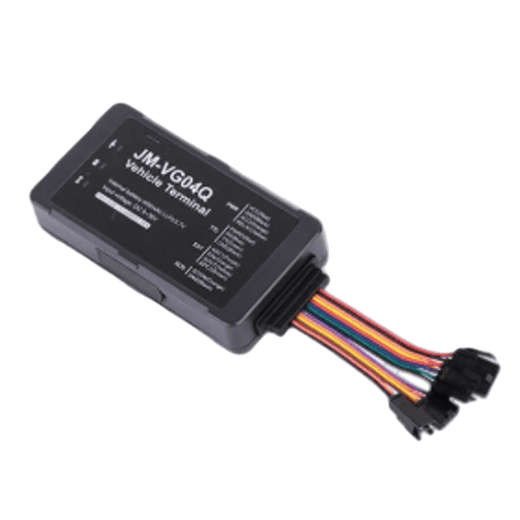

Jimi IoT JM-VG04Q

The JM-VG04Q is a multifunctional tracker for vehicle tracking. High ingress-protection capability prevents the intrusion of dust and water, ensuring its normal functioning in tough conditions. Designed with many inputs and outputs, it can connect to such accessories as a relay, panic button, fuel sensor, and RFID reader to add convenience and competitiveness to your fleet management. What's more, with different alerts associated with typical problems, this device can notify you of every event at once, allowing perfect supervision and control of your vehicles.

Show more

The JM-VG04Q is a multifunctional tracker for vehicle tracking. High ingress-protection capability prevents the intrusion of dust and water, ensuring its normal functioning in tough conditions. Designed with many inputs and outputs, it can connect to such accessories as a relay, panic button, fuel sensor, and RFID reader to add convenience and competitiveness to your fleet management. What’s more, with different alerts associated with typical problems, this device can notify you of every event at once, allowing perfect supervision and control of your vehicles.


Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755
Auto registrationYes

General information

PurposeVehicle
Weight102.5 g (3.62 oz.)
Size106x56.8x22 mm (4.17x2.24x0.87 in)
Waterproof classIPX5
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Network operator IDYes
Cellular network typeQuad-band 850/900/1800/1900
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes
GLONASSYes
GalileoYes

Features

Remote outputs controlYes
OdometerYes
Hardware keyYes
Battery capacity450 mAh

Interfaces

Discrete inputs1
Number of outputs1
RS485 interfaceYes
