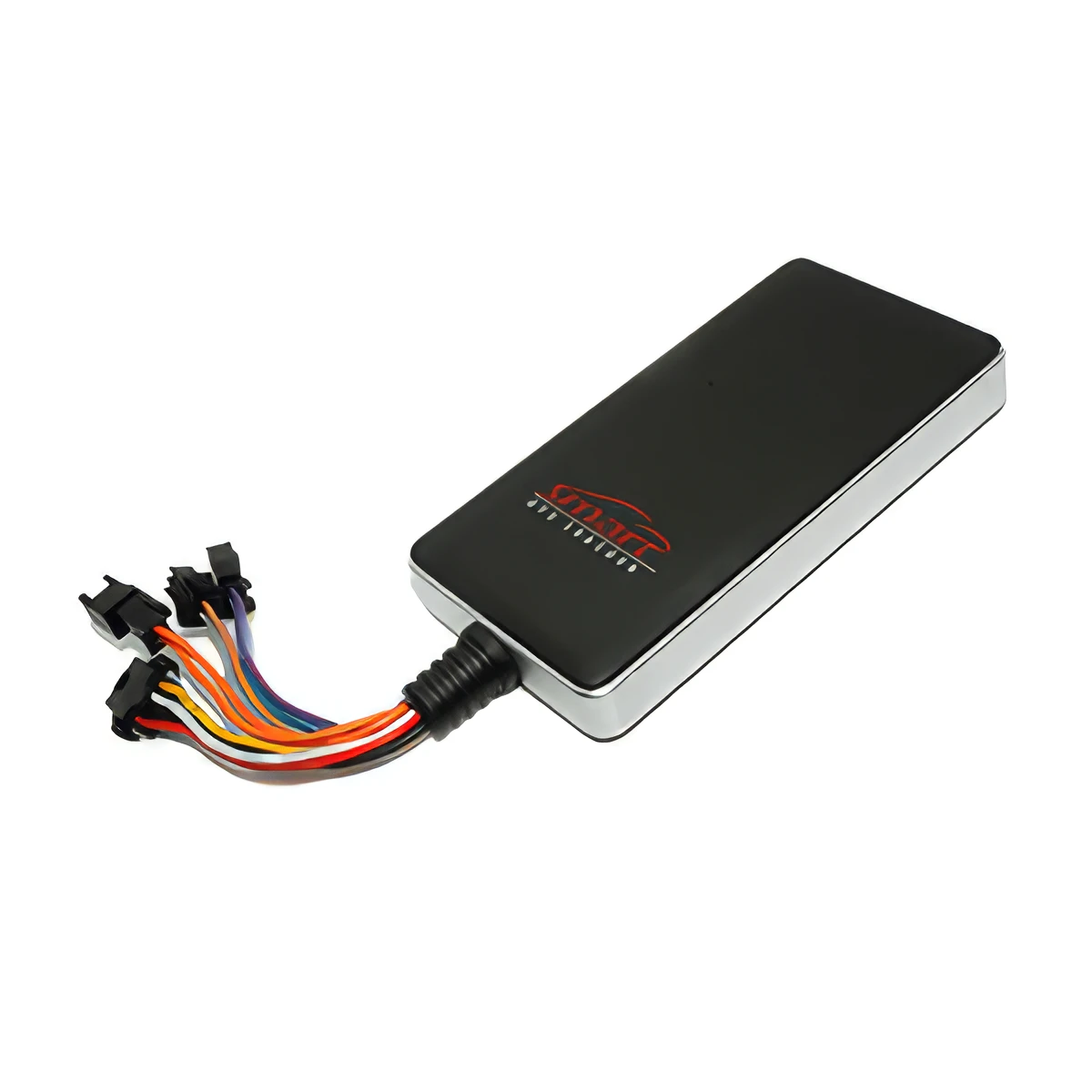

Concox GT06N

Concox GT06N is vehicle GPS tracker with a wide range of options to prevent the car stealing. It is suitable for personal use and fleet management when remote control of the vehicle is the most important. It has a built-in GPS and GSM antenna and some security options like towing sensor, SOS alarm, Tele-cut off function for petrol and electricity.

Show more

Package contents

Concox GT06N is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

The standard package contains:

  • Device
  • Power cord
  • Relay
  • Microphone
  • SOS alarm cable & button
  • User Manual

Location and tracking

Concox GT06N is embedded with GPS, it doesn’t support GLONASS or alternative systems.

The tracking mode, which is supported by device, is tracking by time interval.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Concox GT06N has a Quad-band GSM 2G that allows to operate it all over the world.

Power supply

GT06N features a rechargeable 450 mAh battery. When fully charged it ensures about 3-5 hours of device operation (in normal conditions).

Local and remote management

GT06N can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Concox GT06N has three LED indicating:

  • Backup battery charge
  • GSM/GPRS mode
  • GPS signal reception

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755
Auto registrationYes

General information

PurposeVehicle
Weight96 g (3.39 oz.)
Size90x52x15 mm (3.54x2.05x0.59 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
Forced GNSS location update over SMSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Built-in batteryYes
Battery capacity450 mAh

Interfaces

Discrete inputs3
Number of outputs1
CAN/OBDII reader typeYes
