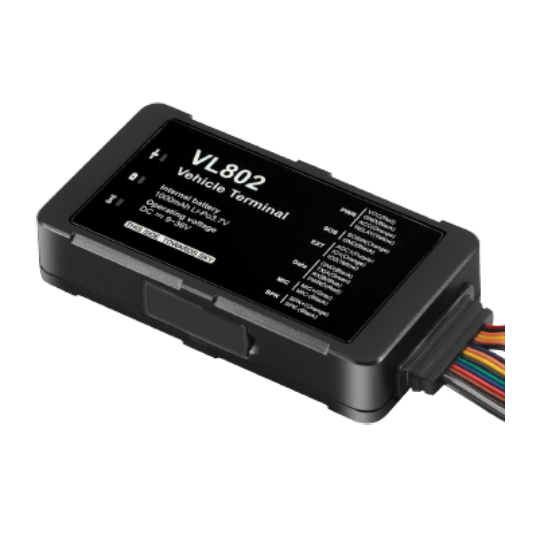

Jimi VL802
The VL802, a cutting-edge 4G GPS tracker by Jimi IoT, is engineered to oversee industrial and commercial fleets, including passenger cars, trucks, and buses. Its two-way communication feature enables fleet managers to enhance driver management tactics. The device ensures reliable connectivity through LTE communication with GSM (2G) fallback, while its array of event-triggered alerts allows real-time fleet monitoring. Equipped with an RS485 interface and multiple I/Os for peripherals, the VL802 can be tailored to optimize operations and increase efficiency. The discreet built-in microphone enables remote audio surveillance of the surroundings, and the vehicle immobilization feature allows cutting off the power source or fuel supply using an installed relay. Moreover, the device offers quick and user-friendly configuration via an app for iOS and Android platforms.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 120 g (4.23 oz.) |
| Size | 105x56x22 mm (4.13x2.2x0.87 in) |
| Waterproof class | IP65 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28, GSM 850/900/1800/1900 |
| Cellular network generation | LTE CAT-1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| GPS | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 1000 mAh |
Interfaces
| Discrete inputs | 3 |
| Number of outputs | 1 |
| Analog sensor | Yes |
