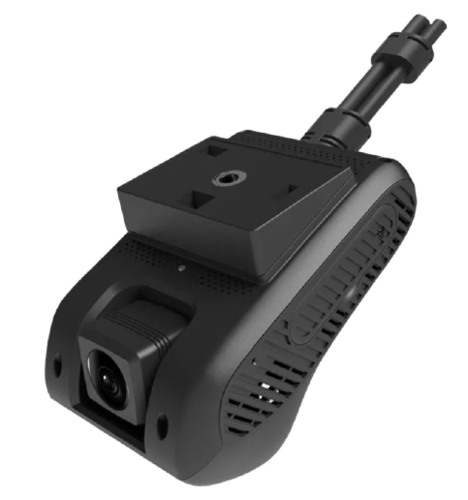

Jimi JC400

The JC400 EdgeCam 2 is the ideal companion for daily driving and long-distance travel. As a dual channel dash cam, it has a front camera to record what is happening on the road, and a detached driver-facing camera that records every detail inside the car. As an integrated product, the JC400 Dual Channel Dash Cam supports GPS tracking, G-sensor, emergency calls, and more, making it the perfect choice to deter crime, record bad motorists, and more quickly resolve disputes resulting from traffic accidents.

Show more

The JC400 EdgeCam 2 is the ideal companion for daily driving and long-distance travel. As a dual channel dash cam, it has a front camera to record what is happening on the road, and a detached driver-facing camera that records every detail inside the car. As an integrated product, the JC400 Dual Channel Dash Cam supports GPS tracking, G-sensor, emergency calls, and more, making it the perfect choice to deter crime, record bad motorists, and more quickly resolve disputes resulting from traffic accidents.

Dual Camera Lens
The dual-facing dashcam has both an integrated road-facing camera and a detached driver-facing camera that records the cab, enabling you to simultaneously monitor the road ahead and the driver’s surroundings.
Driving Behavior Monitoring
Leveraging data on your driving behavior, including harsh acceleration, harsh braking, and extreme cornering will help reduce your fleet’s accident rate and improve fuel economy.
Panic Button
In the event of an accident or other emergency, pressing the panic SOS helps the driver by calling a pre-set SOS number and flagging important video footage for review. The external SOS button can be installed within easy reach for quick activation, giving an added piece of mind to all.


Location and tracking

  • GPS
  • Continuous tracking mode
  • LBS

Mobile networks

  • GSM 850/900/1800/1900
  • WCDMA 850/900/1900/2100
  • 4G FDD: B1 B3 B5 B7 B8 B20
  • TDD: B38,B39,B40,B41
  • 2G/ 3G/ 4G

Power supply

  • External battery 450 mAh
  • External power supply DC 12-36V

Inputs and outputs

3 discrete inputs:

  • Alarm
  • Ignition
  • Charge

Other features

  • Dual Channel Dash Cam
  • Local and remote management
  • Do-it-yourself Installation
  • Driving Behavior Monitoring

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755

General information

PurposeVehicle
InstallationDIY

Housing

Weight225 g (7.94 oz.)
Size109x69x52 mm (4.29x2.72x2.05 in)

GNSS Location

GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 4G, 2G

Interfaces

ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
On request

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
Network operator IDYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
