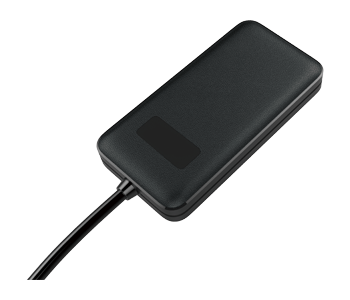

Concox GV20

Concox GV20 is a fully-featured, highly competitive and cost effective 3G GPS tracker developed for vehicle, motor and bus tracking. It offers you crystal clear real-time tracking details, including location, route, flashback, etc., even in tough environment. It supports remote fuel/power cutoff and gives you insight on ignition status. Wherever you go, its instant alert notifications allow you to react accordingly and immediately.

Show more

Package contents

Concox GV20 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

The standard package contains:

  • Device
  • Power cord
  • Relay socket
  • Relay plug
  • 3M cotton stick
  • User Manual

Location and tracking

Concox GV20 is embedded with GPS, it doesn’t support GLONASS or alternative systems.

The tracking mode, which is supported by device, is tracking by time interval.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Concox GV20 has a Quad-band GSM 2G\3G module that allows to operate it all over the world.

Power supply

GV20 features a rechargeable 400 mAh battery. When fully charged it ensures about 3-5 hours of device operation (in normal conditions).

Local and remote management

GV20 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Concox GV20 has three LED indicating:

  • Backup battery charge
  • GSM/GPRS mode
  • GPS signal reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755

General information

PurposeVehicle
InstallationProfessional

Housing

Weight60 g (2.12 oz.)
Size88x45x13 mm (3.46x1.77x0.51 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G

Interfaces

Number of outputs1
Number of inputs (all types)1
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity400 mAh
Built-in batteryYes

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Forced LBS location update over GPRSYes
Supported
Forced GNSS location update over SMSYes
Supported

Certification

CEYes
FCCYes
