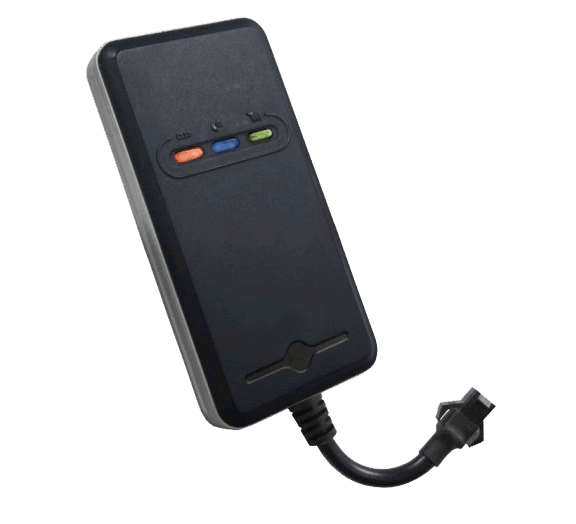

Concox GT02

Concox GT02 or TR02 is a very simple vehicle GPS tracker. It is suitable for fleet management when knowing the location of the vehicle is most important.

Show more

Package contents

Concox GT02 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.

The standard package contains:

  • Device
  • Power cord
  • User Manual

Location and tracking

Concox GT02 is embedded with GPS, it doesn’t support GLONASS or alternative systems.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

Concox GT02 has a Quad-band GSM 2G that allows to operate it all over the world.

Power supply

External power supply range might be 9V – 36V, which makes possible to install device both on cars and vans.

Local and remote management

GT02 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Concox GT02 has three LED indicating:

  • Backup battery charge
  • GSM/GPRS mode
  • GPS signal reception

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47755
Integrated on05/02/2015

General information

PurposeVehicle
InstallationProfessional

Housing

Weight53 g (1.87 oz.)
Size86.7x44x13.7 mm (3.41x1.73x0.54 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported

Certification

CEYes
