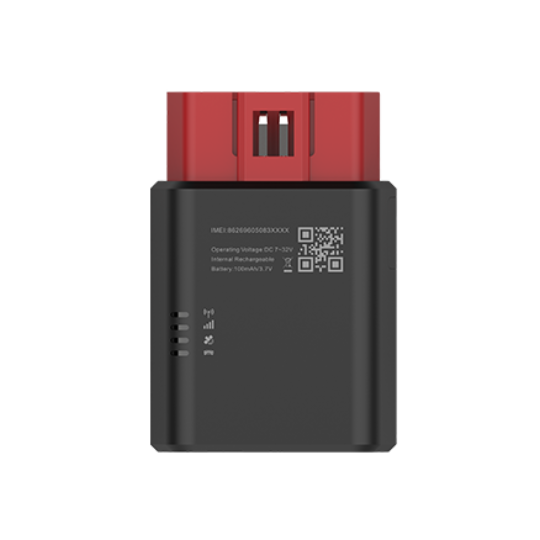

TopFlyTech TorchX 100
The TopFlyTech TorchX 100 is an advanced fleet GPS tracker that utilizes Plug & Play OBDII technology along with a CAN BUS reader. This comprehensive device provides a wealth of data for both heavy and light duty vehicles, including ignition status, Vehicle Identification Number (VIN), odometer readings, fuel levels, and much more. It also boasts the ability to share a WIFI hotspot.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47744 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 73 g (2.58 oz.) |
| Size | 52.8x47.8x24.8 mm (2.08x1.88x0.98 in) |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | Cat 4: BB1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B34/B38/B39/B40/B41/B66, WCDMA: B1/B2/B4/B5/B6/B8/B19, GSM/GPRS 850/900/1800/1900 |
| Cellular network generation | 3G, LTE Cat 4, 2G |
| WiFi | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Beidou | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 100 mAh |
Interfaces
| Discrete inputs | 1 |
| Number of outputs | 1 |
| CAN/OBDII reader type | Internal |
Input Fields
State Fields
Events monitoring
