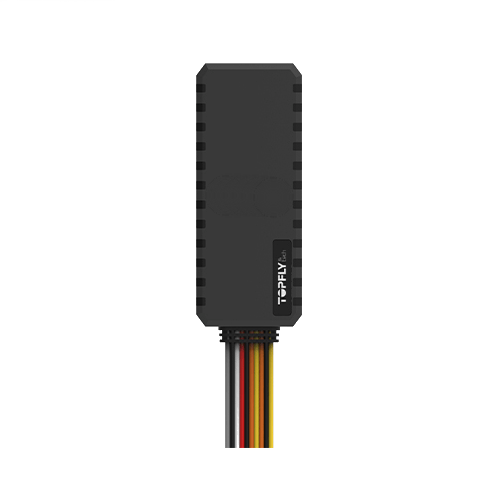

TopFlyTech TLW1-10

TLW1-10 hardwired has 2 more inputs and 1 more outputs than TLW1-8. These inputs and outputs could used for ignition detection, relay, buzzer, SOS button, analog fuel sensors, or your own accessories. When working with BLE sensors it can monitor the temperature, humidity, door status, etc. It’s an all-in-one model to serve your needs for customised solution.

Show more

Location and tracking

  • GPS, GLONASS
  • Continuous and interval tracking modes
  • LBS

Mobile networks

  • 900/1800MHz
  • 4G

Power supply

  • 7 – 32V DC
  • Li-Polymer 200 mAh/ 3.7V internal battery

Inputs and outputs

  • 2 Universal inputs
  • RS232 interface
  • 1 Digital outputs

Other features

  • Emergency button
  • Remote management

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47744
Auto registrationYes

General information

PurposeVehicle
Weight48 g (1.69 oz.)
Size87X35X17.5 mm (3.43x1.38x0.69 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation4G

Location information

GNSS signal levelYes
LBSYes
GPSYes
GLONASSYes

Features

Remote outputs controlYes
OdometerYes
Hardware keyYes

Interfaces

Discrete inputs4
Number of outputs3
Analog sensorYes
