TopFlyTech T8608

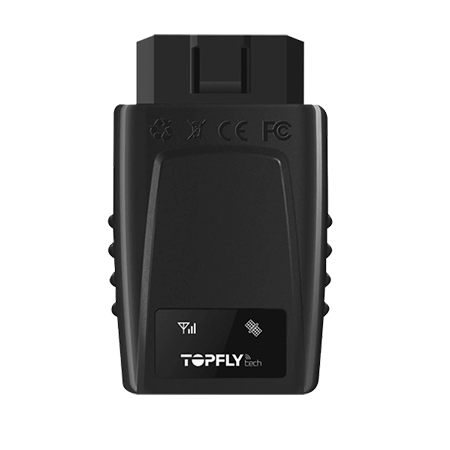

TFT T8608 is a third generation GPS useful tracker for vehicle tracking with a lot of features. With no external antennas, the installation process is quite easy.

Show more

Package content

The package contents:

  • GPS tracker

Location and tracking

T8608 is embedded with GPS and supports GLONASS and alternative systems (Galileo\Beidou).  It also supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Tracking modes in T8608 model has time/interval tracking. And additionally it supports direction variation tracks and distance interval tracks. Also it has an option for sms reports on time interval.

Mobile networks

With Quad-band GSM module T8608 can be operated all over the world.

Remote management

TFT T8608 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8608 has two LEDs:

  • LED indicating GSM/GPRS mode
  • LED indicating GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47744

General information

PurposeVehicle
InstallationDIY

Housing

Weight60 g (2.12 oz.)
Size63x47x26.5 mm (2.48x1.85x1.04 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes
GalileoYes
BeidouYes
Assisted GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of inputs (all types)1
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported

Hardware features

Battery capacity250 mAh
Built-in batteryYes

Tracking features

Tracking modesInterval, Continuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
On request

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Car crashYes
On request

Self monitoring

GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported

Certification

CEYes
FCCYes
EACYes
