TopFlyTech

TOPFLYTECH was founded in 2012 IoT company with the clear objective of delivering relevant and reliable products and solution to improve the living and working conditions of people.It undertook this challenge by solving sophisticated concepts and ideas with the combined talents of a team of talented professionals in telecommunication, electronics and web-based industry.

TopFlyTech GPS trackers are good with the quality. These GPS units are designed for any kind of vehicle or personal control.

Website: http://www.topflytech.com/

Select GPS tracker model

Click on the model image to see detailed information and current list of supported features

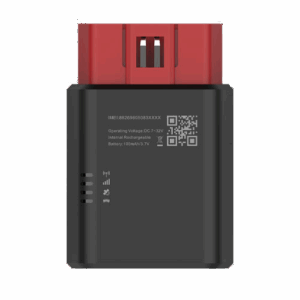

TopFlyTech T8603

TopFlyTech T8603 is a very simple OBDII-type tracker. It does not read any OBD II information, but it uses power supply from OBD II port. No special skills required for the installation - just plug it to the car diagnostic port.

Stegosaurus-996

Location and tracking

T8603 model is embedded with GPS and doesn't have support of GLONASS or alternative systems. It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

OBDII data reading

T8603 is a simple tracker. It only gets power supply from OBDII port, but it does not read any data from vehicle CAN bus or K-Line. With T8603 you will be unable to get telemetry from onboard diagnostic system, сheck engine lamp (MIL) or DTC codes.

Mobile networks

With Quad-band GSM module T8603 can be operated in 2G networks all over the world.

Power supply

T8603 uses OBD II Connector Type B (9 of 16 pins used) and voltage range 6-36V, which makes possible to install T8603 both on cars and trucks.

T8603 also features a built-in rechargeable backup battery. When fully charged it ensures about 1-2 hours of device operation (in normal conditions).

When being unplugged from the OBDII socket the device sends notification to server.

Remote management

T8603 tracker can be fully controlled over GPRS, including configuration of tracking modes. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back.

It supports remote configuration of APN settings, server address and port by SMS.

LED Indication

T8603 has two LEDs

  • Red LED indicates GSM/GPRS mode

  • Blue LED indicates GPS reception

The light goes out automatically in five minutes after the device is plugged into OBDII port.

Additional notes

In some cars it’s not possible to read the Ignition state from the OBDII port. Then T8603 uses proprietary algorithm based on multiple parameters to evaluate the Ignition is ON with 98% accuracy. And the same algorithm it uses to detect the car engine is OFF and reduces the power consumption.

Compared to other OBDII trackers, T8603 seems a little longer. It might cause the device don’t fit the interior details in some cars. To overcome this problem an OBDII extension cable (optional accessory) can be used.

To switch device off (even with charged battery) just remove the SIM card. The device will switch off in 5-10 seconds.

TopFlyTech T8803 PRO

TFT T8803PRO is a useful tracker for vehicle tracking with a lot of features.

With no external antennas, the installation process is quite easy.

PRO model

T8803 “PRO” model is an upgraded version of a T8803A, that features more sensor alarms (such as towing and vibration alarm), also it has one additional input, G-sensor, integrated SOS and Mic cable, smart sleep mode and a newer protocol, which allows to optimize GPRS consumption.

It also has IP66 certification, so it’s waterproof.

Package content

The package contents:

  • GPS tracker
  • One digital input extension line (170 cm)
  • Sponge double-side adhesive tape
  • Power supply extension line (170 cm)

Also as an option, manufacturer offers

  • Engine block relay
  • Microphone and SOS line

Location and tracking

T8803PRO is embedded with GPS and doesn't have support of GLONASS and alternative systems.  It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Tracking modes in T8803PRO model has time/interval tracking. And additionally it supports direction variation tracks and distance interval tracks. Also it has an option for sms reports on time interval.

Mobile networks

With Quad-band GSM 2G module T8803PRO can be operated all over the world.

Power supply

External power supply might be 6-36V, which makes it possible to install T8803 both on cars and vans.

T8803PRO also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Remote management

TFT T8803PRO tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8803 has two LEDs:

  • Red LED indicates GSM/GPRS mode

  • Blue LED indicates GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.

TopFlyTech T8803A

TopFlyTech T8803 "A" is a basic model for vehicle tracking, a simplified modification of T8803 "PRO". It is designed for common applications and might be a good choice for private car owners and budget fleet tracking without special requirements.

Package content

The package contents:

  • GPS tracker
  • One digital input extension line (170 cm)
  • Sponge double-side adhesive tape
  • Power supply extension line (170 cm)

Also as an option, manufacturer offers

  • Engine block relay
  • Microphone and SOS line

Location and tracking

T8803A is embedded with GPS and doesn't have support of GLONASS and alternative systems.  It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

As a basic model in series, T8803A has just simple time/interval tracking.

Mobile networks

With Quad-band GSM 2G module T8803A can be operated all over the world.

Power supply

External power supply might be 6-36V, which makes it possible to install T8803 both on cars and vans.

T8803A also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Local and remote management

TFT T8803A tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8803 has two LEDs:

  • Red LED indicates GSM/GPRS mode

  • Blue LED indicates GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.

TopFlyTech T8806

TopFlyTech T8806 device is designed for vehicle tracking, including fleet management applications. In comparison to T8803 PRO this model features analog inputs for fuel detection and a two-way audio.

Appearance and package content

T8806 is compact and easy-to-install tracker without external antennas. Unlike T8803 PRO, this model T8806 is not waterproof.

The package contents:

  • GPS tracker
  • One digital input and two analog inputs extension line (170 cm)
  • Sponge double-side adhesive tape
  • Power supply extension line (170 cm)

Also as an option, manufacturer offers:

  • Engine block relay
  • Microphone and SOS line
  • Speaker extension line

Location and tracking

T8806 is embedded with GPS and doesn’t have support of GLONASS and alternative systems.  It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

T8806 model supports such tracking models as time/interval tracking.

Also you need to connect Ignition/ACC wire, otherwise, the location service will not provide coordinates correctly.

Mobile networks

With Quad-band GSM 2G module T8806 can be operated all over the world.

Power supply

External power supply might be 6-36V, which makes it possible to install T8806 both on cars and vans.

T8806 also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Remote management

TopFlyTech T8806 tracker is fully controlled over GPRS/IP channel, including tracking mode settings and outputs control.

There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8806 has two LEDs:

  • Red LED indicates GSM/GPRS mode

  • Blue LED indicates GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.

TopFlyTech T8808A

TopFlyTech model T8808A is a compact and affordable tracker for satellite monitoring of vehicles, motor bikes and other mobile objects.

It has no external antennas, so the installation process is quite simple.

T8808 versions: “A” and “B”

In comparison to basic model T8808B, which has no ouputs, the model T8808A features one output – for engine block relay or any other control device:

  • T8808A has 4 pin connector: Power, GND, ACC (orange) and Output (yellow)

Package content

The package contents:

  • GPS tracker
  • 4-pin harness (T8808A model)
  • Sponge double-side adhesive tape
  • Power supply extension line

Also as an option, manufacturer offers engine block relay for T8808A model.

Location and tracking

T8808A is embedded with GPS and doesn't have support of GLONASS and alternative systems. It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

With Quad-band GSM 2G module T8808A can be operated all over the world.

Power supply

With a voltage range 6-36V, it is possible to install T8808 both on cars and vans.

T8808 also features a built-in rechargeable backup battery. When fully charged it ensures about 2-3 hours of device operation (in normal conditions). When external power is cut off, the tracker sends location to server.

To switch the tracker OFF you need to remove the SIM card, after that in 5-10 seconds the device will switch off.

Local and remote management

T8808 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8808 has two LEDs:

  • Red LED indicates GSM/GPRS mode

  • Blue LED indicates GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.

Additional notes

The “ACC” wire of T8808 must be correctly connected. According to it, the device determines that vehicle is in use, switches GPS module to active mode and reports about its position to tracking server.

If there is no “ACC” signal, GPS module goes off and device does not send GPS coordinates. However, Cell ID information is updated regardless the “ACC” status.

There is also a “lifehack” which can be used for testing purposes or during the installation process: if you’re shaking the device within 60-70 seconds, GPS module will be enabled by accelerometer activity (regardless the “ACC” state) and device will update its location.

TopFlyTech T8808B

TopFlyTech model T8808B is a compact and affordable tracker for satellite monitoring of vehicles, motor bikes and other mobile objects.

It has no external antennas, so the installation process is quite simple.

T8808 version “B”

T8808B is a basic model, that has model has 3 pin connector: Power, GND and ACC (orange)

Package content

The package contents:

  • GPS tracker
  • 3-pin harness  (8808-B model)
  • Sponge double-side adhesive tape
  • Power supply extension line

Location and tracking

T8808B is embedded with GPS and doesn't have support of GLONASS and alternative systems. It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

With Quad-band GSM 2G module T8808B can be operated all over the world.

Power supply

With a voltage range 6-36V, it is possible to install T8808 both on cars and vans.

T8808 also features a built-in rechargeable backup battery. When fully charged it ensures about 2-3 hours of device operation (in normal conditions). When external power is cut off, the tracker sends location to server.

To switch the tracker OFF you need to remove the SIM card, after that in 5-10 seconds the device will switch off.

Local and remote management

T8808 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

T8808 has two LEDs:

  • Red LED indicates GSM/GPRS mode

  • Blue LED indicates GPS reception

The LEDs light goes out automatically in five minutes after the device is switched on.

Additional notes

The “ACC” wire of T8808 must be correctly connected. According to it, the device determines that vehicle is in use, switches GPS module to active mode and reports about its position to tracking server.

If there is no “ACC” signal, GPS module goes off and device does not send GPS coordinates. However, Cell ID information is updated regardless the “ACC” status.

There is also a “lifehack” which can be used for testing purposes or during the installation process: if you’re shaking the device within 60-70 seconds, GPS module will be enabled by accelerometer activity (regardless the “ACC” state) and device will update its location.
