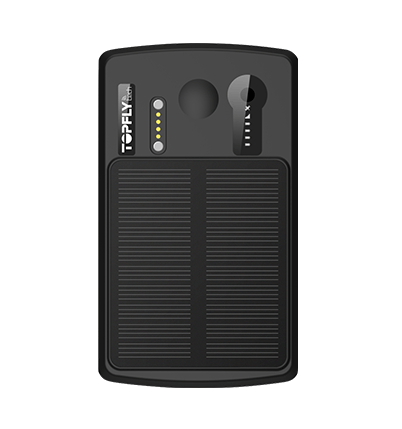

TopFlyTech TLP1-SF/SM

The tracker is using GNSS & LTE technologies and could collect device coordinates then transfer them via LTE network to the server. It has been widely used in commercial transportation, company vehicle fleet management, intelligent transportation, logistics, car rental, engineering machinery, marine transportation and other segments.

Show more

Location and tracking

  • GPS, GLONASS, Galileo, Beido
  • Interval and continious tracking modes
  • LBS

Mobile networks

  • FDD: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28
  • TDD: B39 (Cat M1 only)
  • GSM: 850/900/1800/1900 Mhz

Power supply

  • Build-in battery (Li-Po, 4800 mAh/ 3.7 V)

Other features

  • Emergency button
  • Compact size
  • LED indication
  • Waterproof
  • Data Security (MD5/AES)
  • Built-in Magnet for Mounting
  • Solar panel Charging

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47744
Auto registrationYes

General information

Purposeasset,personal
Size69.3x120x24.8 mm (2.73x4.72x0.98 in)
Waterproof classIP68
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeLTE 700/850/1700/1800/1900/2100/2600, GSM 850/900/1800/1900
Cellular network generation4G, 2G
Network operator IDYes

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
GPSYes
GLONASSYes
GalileoYes
BeidouYes

Features

OdometerYes
Motion sensorYes
Built-in batteryYes
Battery capacity4800 mAh
