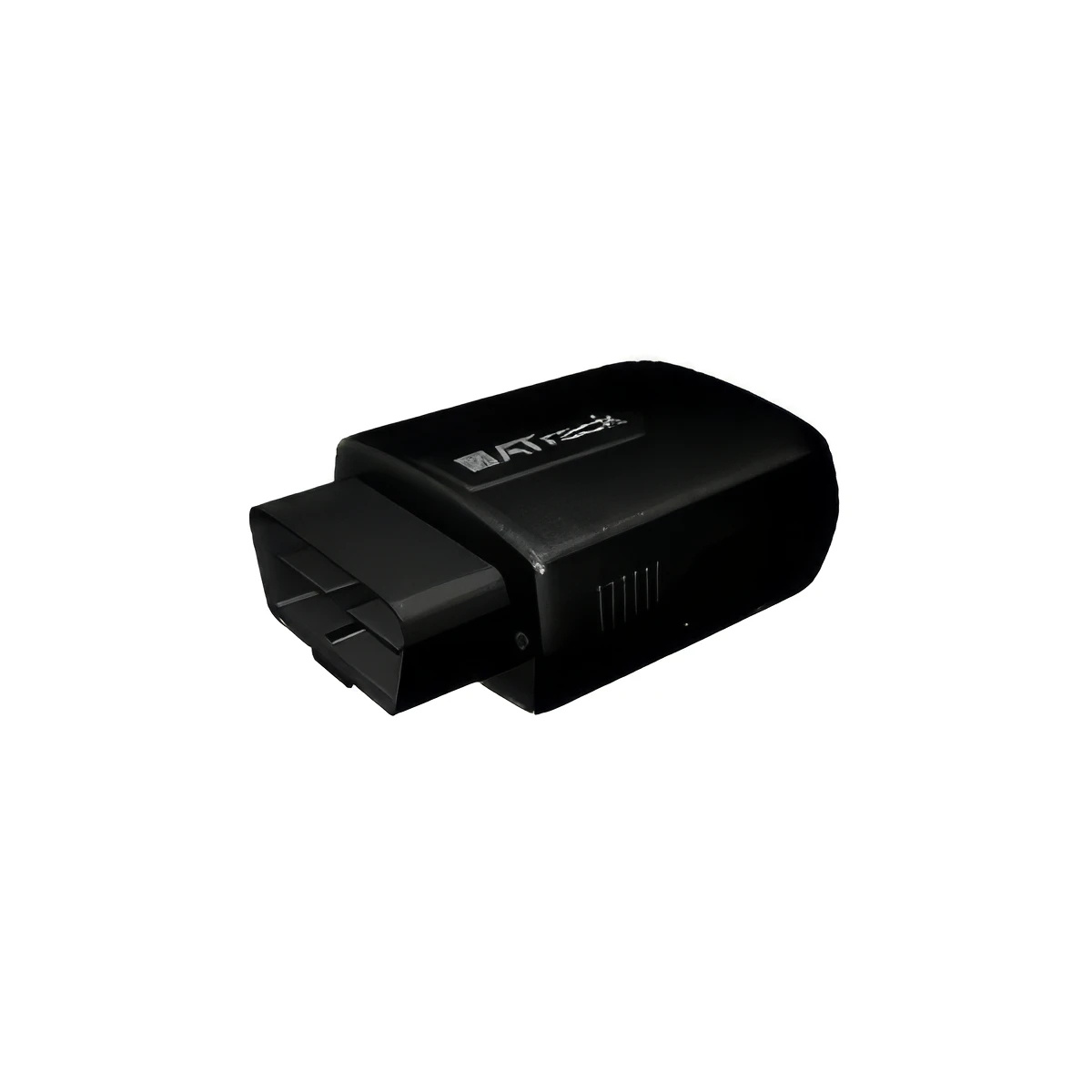

ATrack AX9

AX9 is an optional 2G/3G GPS tracking unit with OBD-II Interface and plug-n-play installation. Featuring OBD / CAN Bus J1939 data acquisition, Bluetooth connectivity, driving behavior event management, and user-defined reports, AX9 is an ideal solution for Usage Based Insurance, Car Rental, Fleet Management of both Passenger Vehicles and Heavy-Duty Trucks, and Teenage Driver Tracking.

Show more

Location and tracking

  • GPS sensor with high sensitivity
  • Continuous tracking mode
  • LBS support

Mobile networks

  • Supports the following bands
    • GSM Quad-band 850/900/1800/1900 MHz
    • WCDMA/HSPA 850/900/1900/2100 MHz
    • CDMA2000 800/1900 MHz
  • 3G support

Power supply

  • Draws power from OBDII port
  • 90 mAh backup Li-Ion battery

Inputs and outputs

  • OBDII connector

Other features

  • 3-axis G-sensor
  • Bluetooth connectivity
  • OTA firmware updates
  • Harsh driving detection
  • Internal buffer for 150 000 positions, allowing the tracker to record tracks even when no network is available

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47712

Housing

Weight73 g (2.58 oz.)
Size63x54x28 mm (2.48x2.13x1.1 in)

Interfaces

Discrete inputsYes
Supported

Hardware extras

Driver ID readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

External power cut offYes
Supported
Car crashYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeInternal
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
On request
