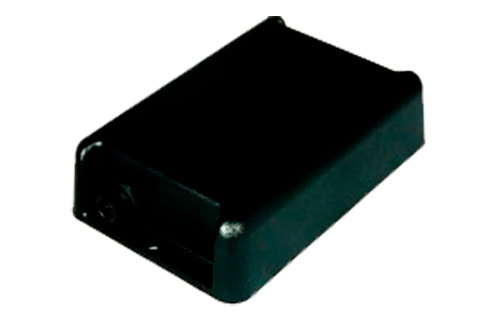

ATrack AS3

ATrack AS3 is designed for monitoring vehicle or trailer with GPS for location tracking and GPRS/HSPA/CDMA for data communication. The internal rechargeable battery makes it an ideal solution for managing asset that is normally connected to permanent power but may be disconnected for periods of time.

Show more

The AS3 product has optimal design for operating environment with IP67 rating, which provides total protection against temperature, dust, and water spray. AS3 on the other hand has GPIOs that allow for a wide range of applications.

Package contents

ATrack AS3 package contains the following device/accessories:

  • Device
  • Power/IO Cable
  • GPS Antenna

Product features:

  • Flexible data communication network options
  • Data communication by SMS/TCP/UDP
  • Large capacity of backup battery
  • Optional GPS+GLONASS engine
  • Built-in 3-axis G-sensor
  • FOTA firmware upgrade using FTP
  • Configurable Real Time Tracking & Logging
  • Intelligent event control engine

Location and tracking

ATrack AS3 is embedded with GPS. It does not support A-GPS, or GLONASS technology.

As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

ATrack AS3 has a Quad-band GSM 2G/3G module that allows to operate it all over the world.

Power supply

External power supply might be 9-40V, which makes possible to use ATrack AS3 with all car models.

Local and remote management

ATrack AS3 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS. It also supports firmware update over the air (FOTA).

LED Indication

ATrack AS3 model has three LEDs:

  • Power LED – indicates power status
  • GPS LED – indicates GPS signal
  • GSM LED – indicates GSMS signal

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47712

General information

PurposeVehicle, Asset
InstallationProfessional

Housing

Weight100 g (3.53 oz.)
Size80x48x26 mm (3.15x1.89x1.02 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation3G, 2G

Interfaces

Number of RS232 interfaces1
Number of outputs3
Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
RS232 interfaceYes
1-Wire interfaceYes
OutputsYes
Supported

Hardware features

Battery capacity650 mAh
Built-in batteryYes

Hardware extras

Driver ID readingYes
On request
External temperature sensor readingYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
Smart power consumptionYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
Mobile signal jammingYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Firmware update OTAYes
Forced GNSS location update over SMSYes
On request

Certification

EACYes
