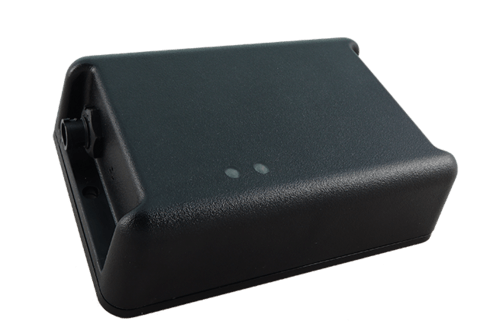

ATrack AS11
AS11 supports 4G LTE Cat.1/Cat.M1 and is equipped with a rechargeable battery making it an ideal solution for asset management. With IP68 rated casing, AS11 is designed to operate in an extreme environment against water and dust. It is also equipped with GPIOs for varieties of application expandability and flexibility by connecting to a wide range of accessories.
Show more
Location and tracking
- GPS, GLONASS
- Continuous tracking modes
- LBS
Mobile networks
- Quad band
- 2G / 4G
Power supply
- Build-in 3.7V 6400mAh battery
- External power supply 12V / 24V
Inputs and outputs
- 4 inputs
- 2 outputs
- RS232
- Bluetooth Low Energy v4.2 Class 2
Other features
- Flame Retardant ABS+PC enslosure
- Screw Mount and Magnet Mount
- LED indication
- 64 MB flash memory
- Accessories
Server Integration
| EU platform | tracker.navixy.com (52.57.1.136) | |
| US platform | tracker.us.navixy.com (13.52.37.2) | |
| Server port | 47712 |
General information
| Purpose | Vehicle | |
| Installation | Professional |
Housing
| Weight | 250 g (8.82 oz.) | |
| Size | 120x80x36 mm (4.72x3.15x1.42 in) | |
| Waterproof class | IP68 | |
| Magnet mounting | Yes |
GNSS Location
| Internal antenna (GNSS) | Yes | |
| GPS | Yes | |
| GLONASS | Yes |
Connectivity
| Cellular network type | GSM Quad Band | |
| Internal antenna (Connection) | Yes | |
| Cellular network generation | 4G, 2G |
Interfaces
| Number of RS232 interfaces | 1 | |
| Number of outputs | 2 | |
| Number of inputs (all types) | 4 | |
| ACC/Ignition input | Yes | Supported |
| Discrete inputs | Yes | Supported |
| Analog inputs | Yes | Supported |
| RS232 interface | Yes | |
| 1-Wire interface | Yes |
Hardware features
| Battery capacity | 6400 mAh | |
| Built-in battery | Yes |
Hardware extras
| Driver ID reading | Yes | Supported |
| External temperature sensor reading | Yes |
Tracking features
| Tracking modes | Continuous | |
| Location by Cell ID | Yes | Supported |
| Odometer | Yes | Supported |
| ECO driving | Yes | Supported |
Events monitoring
| Battery low | Yes | Supported |
| External power cut off | Yes | Supported |
Self monitoring
| Network signal level | Yes | Supported |
| GNSS signal level | Yes | Supported |
| External power source voltage | Yes | Supported |
| Internal battery level | Yes | Supported |
CAN/OBDII reading
| CAN/OBDII reader type | External | Supported |
Remote management
| Server connection setup over SMS | Yes | Supported |
| Remote device configuration | Yes (over GPRS) | Supported |
| Remote outputs control | Yes | |
| Forced GNSS location update over SMS | Yes | Supported |
Certification
| FCC | Yes |
